Wheel diameter
80, 100, 125, 160, 200mm
Load capacity
50, 70, 100, 140, 205kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 85+/-3

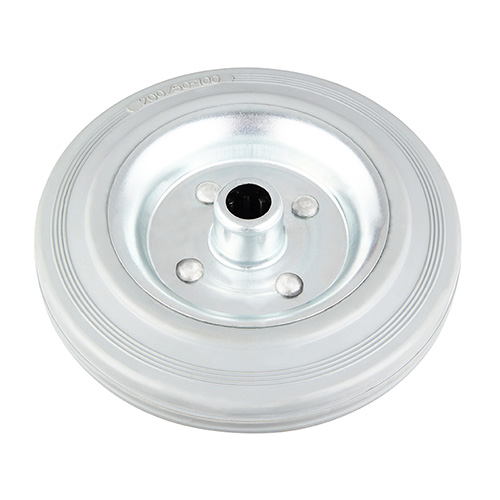

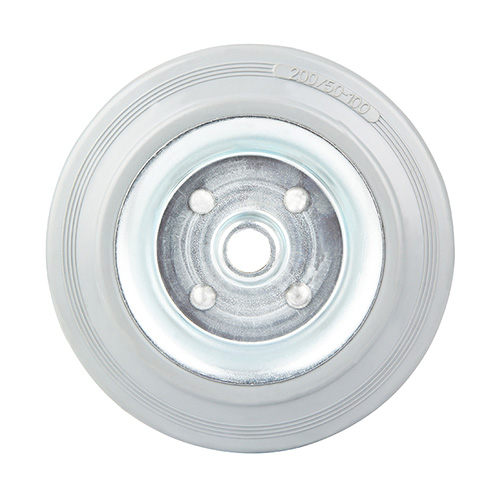

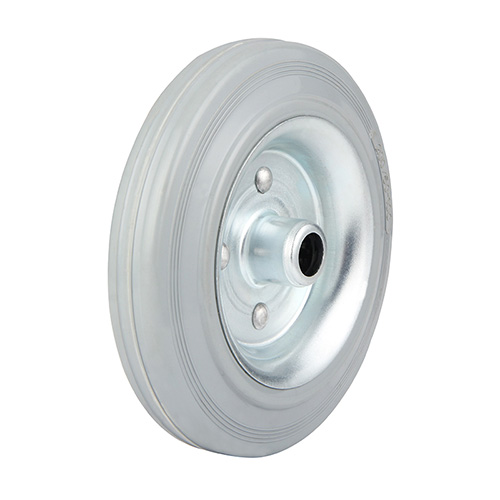

Grey 85+/-3 solid rubber tread, pressed steel wheel centre, roller bearing
 Wheel Diameter |
 Width of Tread |
 Hub Length |
 Width of Axle Hole |
 Load capacity |
number |
|---|---|---|---|---|---|
| 80 | 30 | 40 | 12 | 50 | 80D30JGMRX4012 |
| 100 | 30 | 40 | 12 | 70 | 100D30JGMRX4012 |
| 125 | 37.5 | 50 | 15 | 100 | 125D37.5JGMRX5015 |
| 160 | 40 | 60 | 15 | 140 | 160D40JGMRX6020 |
| 200 | 50 | 60 | 20 | 205 | 200D50JGMRX6020 |
Grey 85+/-3 solid rubber tread, pressed steel wheel centre, roller bearing
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
