Wheel diameter
100, 125, 160, 200mm
Load capacity
270, 310, 510, 600kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 85

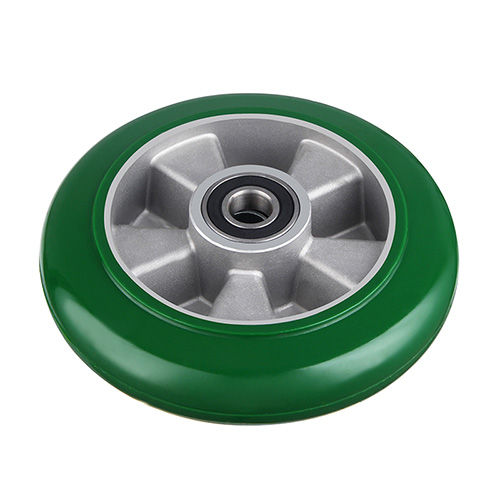

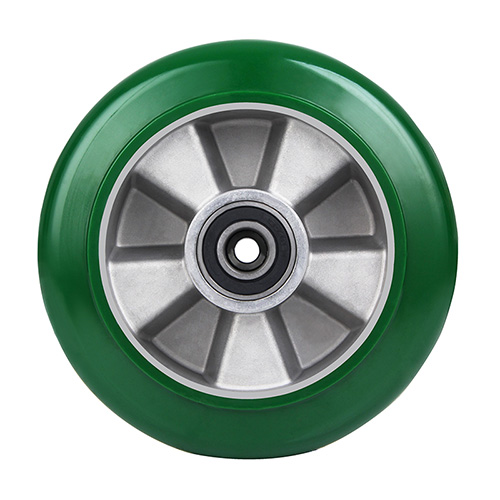

Silvery casting-aluminium wheel centre, shore a 85 round green elastic polyurethane tread, two ball bearings
 Wheel Diameter |
 Width of Tread |
 Hub Length |
 Width of Axle Hole |
 Load capacity |
number |
|---|---|---|---|---|---|
| 100 | 40 | 40 | 15 | 270 | 100H40JUHRDX4015 |
| 125 | 40 | 50 | 15 | 310 | 125H40JUHRDX4020 |
| 160 | 50 | 60 | 60 | 510 | 160H50JUHRDX6020 |
| 200 | 50 | 60 | 60 | 600 | 200H50JUHRDX6020 |
Silvery casting-aluminium wheel centre, shore a 85 round green elastic polyurethane tread, two ball bearings
Tile Floor
Resin Cement Floor
