Wheel diameter
80, 100, 125, 150, 160, 200mm
Load capacity
115, 170, 270, 350, 400, 500kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 92

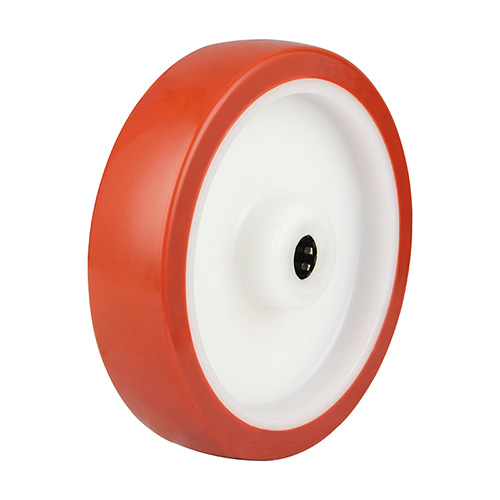

White polyamide wheel centre, shore a 92 red injection polyurethane tread, roller bearing
 Wheel Diameter |
 Width of Tread |
 Hub Length |
 Width of Axle Hole |
 Load capacity |
number |
|---|---|---|---|---|---|
| 80 | 34 | 40 | 12 | 115 | 80F34BUPRX4012 |
| 100 | 34 | 40 | 12 | 170 | 100F34BUPRX4012 |
| 125 | 36 | 50 | 15 | 270 | 125F36BUPRX5015 |
| 150 | 40 | 60 | 20 | 350 | 150F40BUPRX6020 |
| 160 | 40 | 60 | 20 | 400 | 160F40BUPRX6020 |
| 200 | 50 | 60 | 20 | 500 | 200F50BUPRX6020 |
White polyamide wheel centre, shore a 92 red injection polyurethane tread, roller bearing
Tile Floor
Resin Cement Floor
