Wheel diameter
80, 100, 125mm
Load capacity
125, 160, 200kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 85

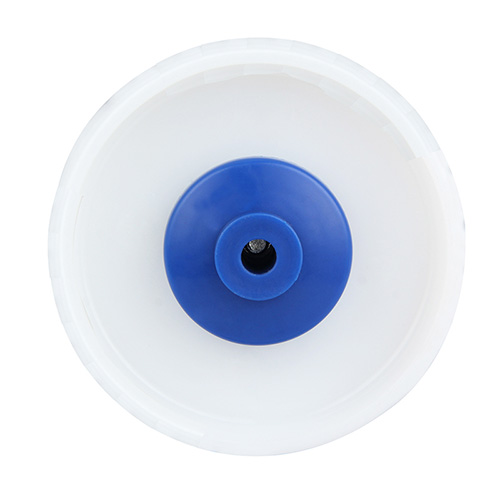

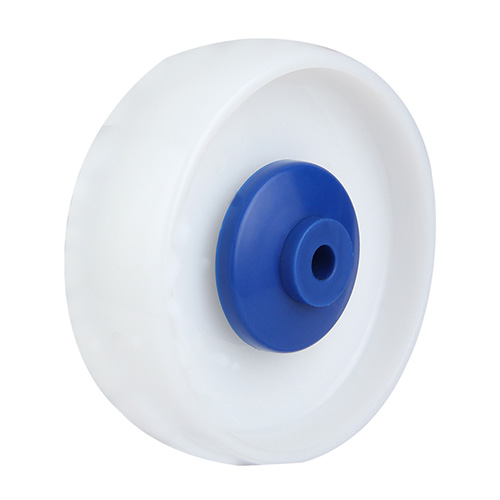

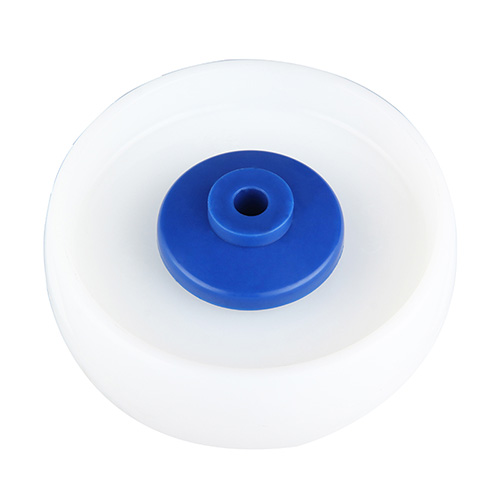

White injection Polypropylene,central ball bearing, blue samll plastic tread guards
 Wheel Diameter |
 Width of Tread |
 Hub Length |
 Width of Axle Hole |
 Load capacity |
number |
|---|---|---|---|---|---|
| 80 | 34 | 42 | 8 | 125 | 80B34BPPBA428 |
| 100 | 36 | 42 | 8 | 160 | 100B36BPPBA428 |
| 125 | 40 | 52 | 10 | 200 | 125B40BPPBA5210 |
White injection polyopylene ,central ball bearing, blue samll plastic tread guards
Tile Floor
Resin Cement Floor
