 Wheel Diameter |
 Width of Tread |
 Hub Length |
 Width of Axle Hole |
 Load capacity |
number |
|---|---|---|---|---|---|
| 80 | 34 | 42 | 8 | 200 | 80B34BPABA428 |
| 100 | 36 | 42 | 8 | 250 | 100B36BPABA428 |
| 125 | 40 | 52 | 10 | 325 | 125B40BPABA5210 |
Wheel diameter
80, 100, 125mm
Load capacity
200, 250, 325kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 80

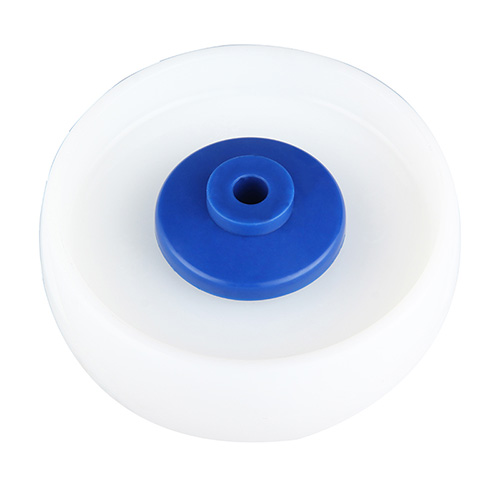

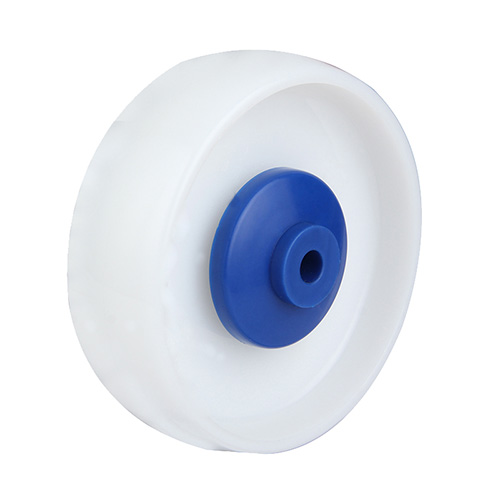

White injection polyamide,central ball bearing, blue samll plastic tread guards
|
Wheel Diameter |
Width of Tread |
Hub Length |
Width of Axle Hole |
Load capacity |
number |
|---|---|---|---|---|---|
| 80 | 34 | 42 | 8 | 200 | 80B34BPABA428 |
| 100 | 36 | 42 | 8 | 250 | 100B36BPABA428 |
| 125 | 40 | 52 | 10 | 325 | 125B40BPABA5210 |
Tile Floor
Resin Cement Floor
