Wheel diameter
80, 100, 125, 160, 200mm
Load capacity
200, 250, 325, 360, 500kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 80

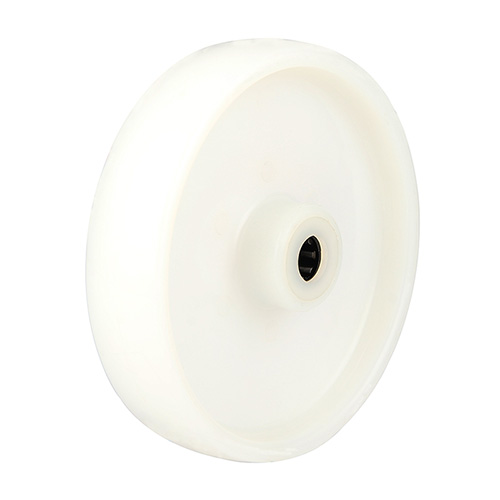

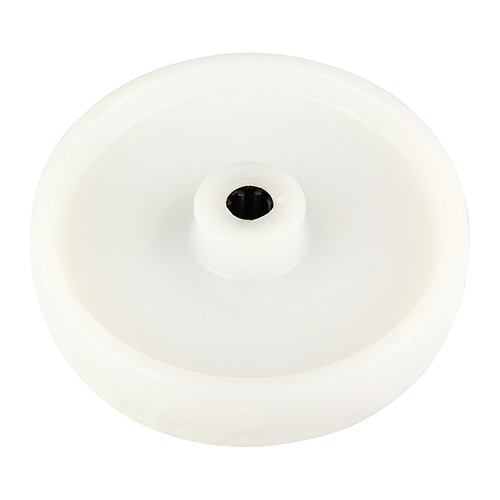

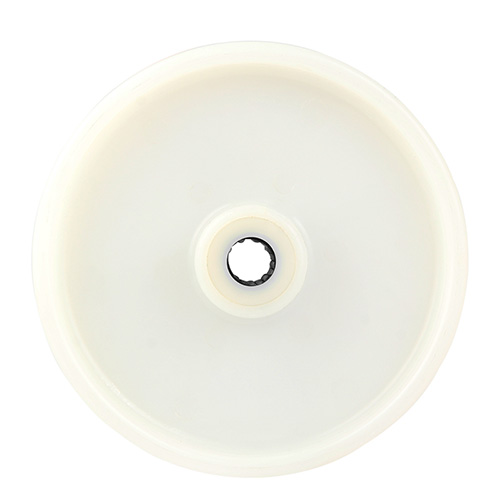

White injection polyamide, roller bearing
 Wheel Diameter |
 Width of Tread |
 Hub Length |
 Width of Axle Hole |
 Load capacity |
number |
|---|---|---|---|---|---|
| 80 | 34 | 40 | 12 | 200 | 80B34BPARX4012 |
| 100 | 36 | 40 | 12 | 250 | 100B367BPARX4012 |
| 125 | 40 | 50 | 15 | 325 | 125B40BPARX5015 |
| 160 | 40 | 60 | 20 | 360 | 160B40BPARX6020 |
| 200 | 46 | 60 | 20 | 500 | 200B46BPARX6020 |
Tile Floor
Resin Cement Floor
Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
