Wheel Diameter |
Width of Tread |
Hub Length |
Width of Axle Hole |
Load capacity |
number |
---|---|---|---|---|---|
60 | 35 | 40 | 12 | 100 | 60D35CEPDX4012 |
75 | 36 | 40 | 15 | 130 | 75D36CEPDX4015 |
80 | 36 | 40 | 15 | 150 | 80D36CEPDX4015 |
100 | 36 | 40 | 15 | 200 | 100D36CEPDX4015 |
100 | 50 | 60 | 15 | 200 | 100D50CEPDX6015 |
125 | 36 | 50 | 20 | 250 | 125D36CEPDX5015 |
125 | 50 | 60 | 20 | 250 | 125D50CEPDX6020 |
150 | 50 | 60 | 20 | 375 | 150D50CEPDX6020 |
160 | 42 | 42 | 20 | 315 | 160D42CEPDX6020 |
160 | 50 | 60 | 20 | 400 | 160D50CEPDX6020 |
160 | 50 | 60 | 20 | 400 | 160D50CEPDX/W6020 |
200 | 45 | 60 | 20 | 450 | 200D45CEPDX6020 |
200 | 45 | 60 | 20 | 500 | 200D50CEPDX6020 |
200 | 50 | 60 | 20 | 500 | 200D50CEPDX/W6020 |
250 | 50 | 60 | 20 | 600 | 250D50CEPDX6020 |

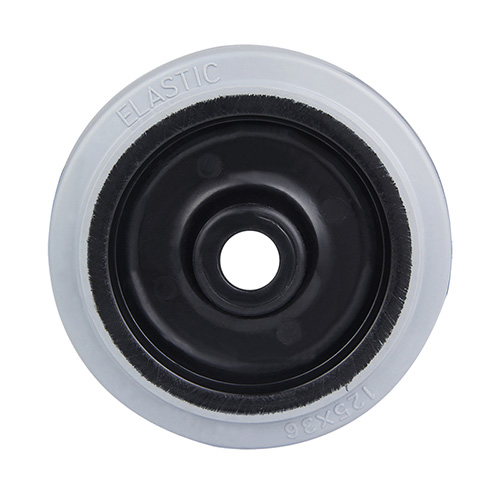

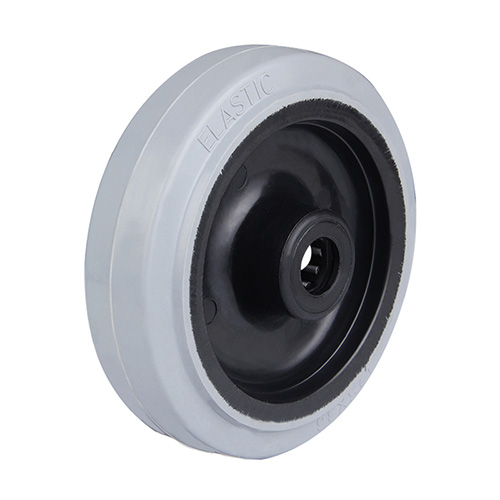

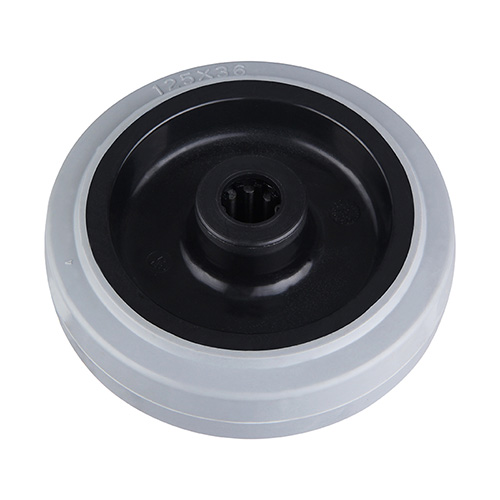

Black polyamide wheel centre, shore a 68+5 grey elastic rubber tread, two ball bearings
