Wheel diameter
75, 80, 100, 125mm
Load capacity
130, 150, 200, 250kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 68+5

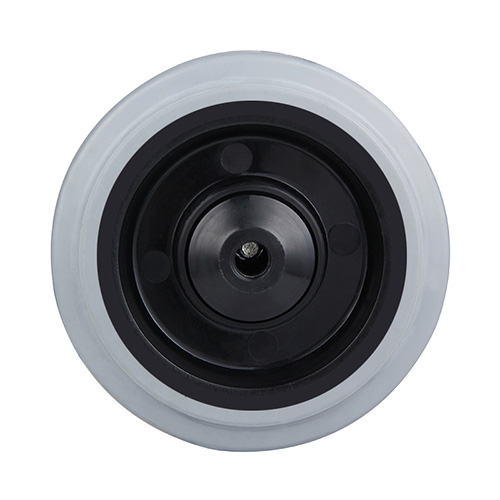

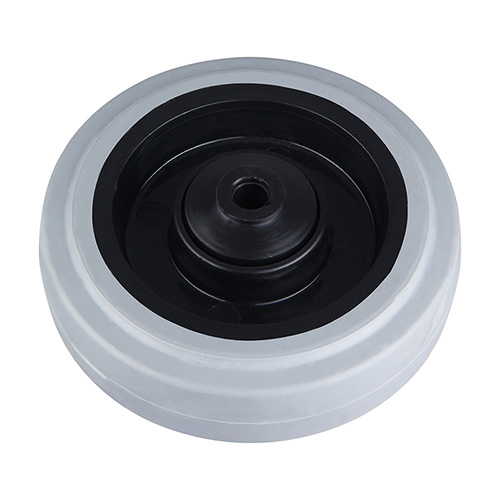

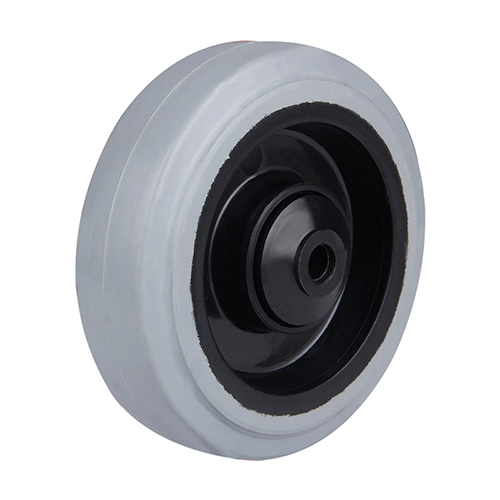

Black polyamide wheel centre, shore a 68+5 grey elastic rubber tread, central ball bearing, grey samll plastic tread guards
 Wheel Diameter |
 Width of Tread |
 Hub Length |
 Width of Axle Hole |
 Load capacity |
number |
|---|---|---|---|---|---|
| 75 | 36 | 42 | 8 | 130 | 75D36CEPBA428 |
| 80 | 36 | 42 | 8 | 150 | 80D36CEPBA428 |
| 100 | 36 | 42 | 8 | 200 | 100D36CEPBA428 |
| 125 | 36 | 52 | 10 | 250 | 125D36CEPBA5210 |
| 125 | 38 | 47 | 8 | 250 | 125D38CEPBA478 |
Black polyamide wheel centre, shore a 68+5 grey elastic rubber tread, central ball bearing, grey samll plastic tread guards
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
