Wheel diameter
80, 100, 125, 200mm
Load capacity
160, 250, 300, 350kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 68+5

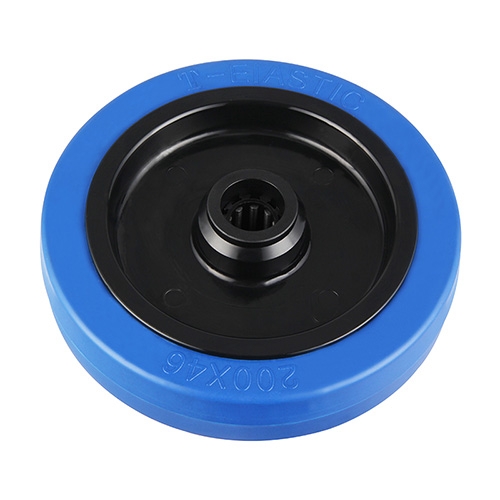

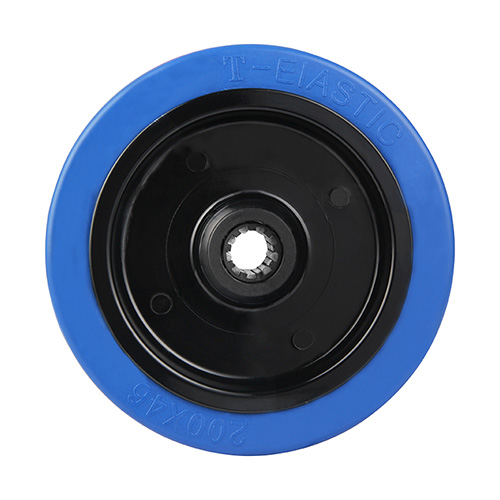

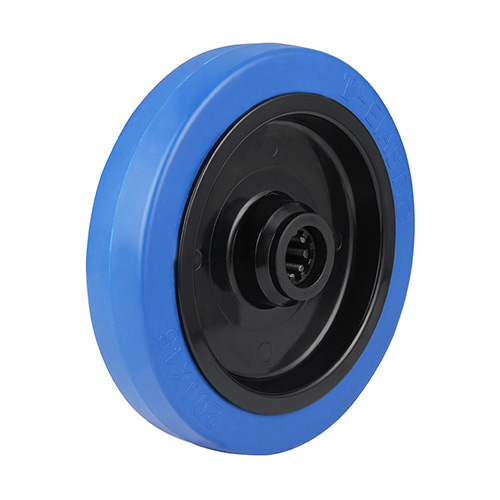

Black polyamide wheel centre, shore a 68+5 blue elastic rubber thread, roller bearing
 Wheel Diameter |
 Width of Tread |
 Hub Length |
 Width of Axle Hole |
 Load capacity |
number |
|---|---|---|---|---|---|
| 100 | 34 | 40 | 12 | 160 | 100A34CETRX4012 |
| 125 | 40 | 50 | 15 | 250 | 125A40CETRX5015 |
| 160 | 46 | 60 | 20 | 300 | 160A46CETRX6020 |
| 200 | 46 | 60 | 20 | 350 | 200A46CETRX6020 |
Black polyamide wheel centre, shore a 68+5 blue elastic rubber thread, roller bearing
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
