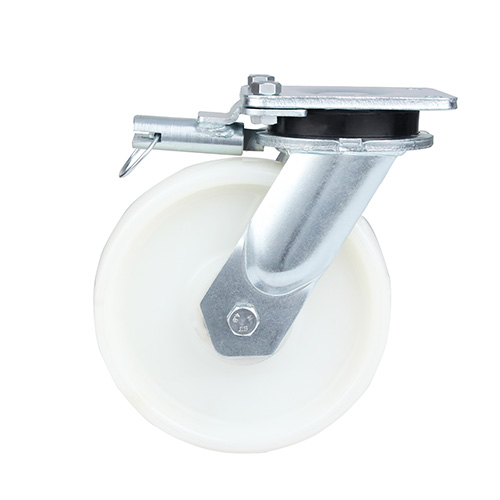

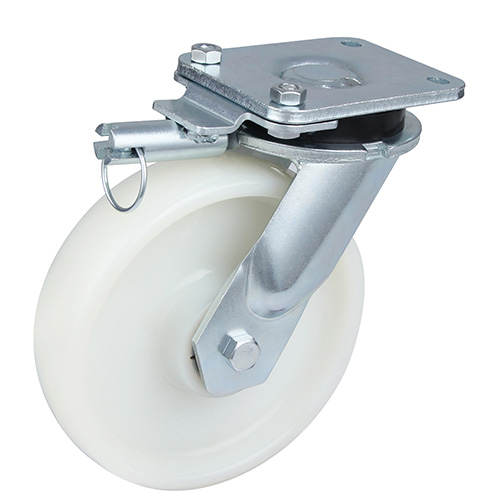

White Polyamide Super Heavy Duty Swivel Castor with Directional Lock White Polyamide Super Heavy Duty Swivel Castor with Directional Lock
White Polyamide Super Heavy Duty Swivel Castor with Directional Lock White Polyamide Super Heavy Duty Swivel Castor with Directional Lock
White Polyamide Super Heavy Duty Swivel Castor with Directional Lock White Polyamide Super Heavy Duty Swivel Castor with Directional Lock

White Polyamide Super Heavy Duty Swivel Castor with Directional Lock

Super Heavy Duty Castors , White

Housing

directional_lock_castors

Wheel diameter

125, 150, 160, 200, 250mm

Load capacity

600, 800, 850, 1000, 1300kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 92

Description

Swivel head with tapered roller bearing and axial ball bearing,welded steel fork., White injection polyamide,two ball bearings

Chat Now

TECHNICAL DATA


Wheel Diameter

Width of Tread

Size of Plate

Plate hole centers

Plate hole

Offset
Overall height

Load capacity
number
125 50 135x110 105x80 13.5x11 50 170 700 23P1DB125B50BPHDX6020
150 50 135x110 105x80 13.5x11 57 200 800 23P1DB150B50BPHDX6020
160 50 135x110 105x80 13.5x11 57 205 800 23P1DB160B50BPHDX6020
200 50 135x110 105x80 13.5x11 65 245 800 23P1DB200B50BPHDX6020


Swivel head with tapered roller bearing and axial ball bearing,welded steel fork., White injection polyamide,two ball bearings

Suitable Floor
Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor

Quality & Service since 18 Year

Our quality is creating an easier work-life for the user of the wheel.

Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
