Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Swivel radius |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
125 | 50 | 135x110 | 105x80 | 13.5x11 | 50 | 148.5 | 170 | 700 | 23P1FB125B50BPHDX6020 |
150 | 50 | 135x110 | 105x80 | 13.5x11 | 57 | 148.5 | 200 | 800 | 23P1FB150B50BPHDX6020 |
160 | 50 | 135x110 | 105x80 | 13.5x11 | 57 | 148.5 | 205 | 800 | 23P1FB160B50BPHDX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 55 | 148.5 | 245 | 800 | 23P1FB200B50BPHDX6020 |

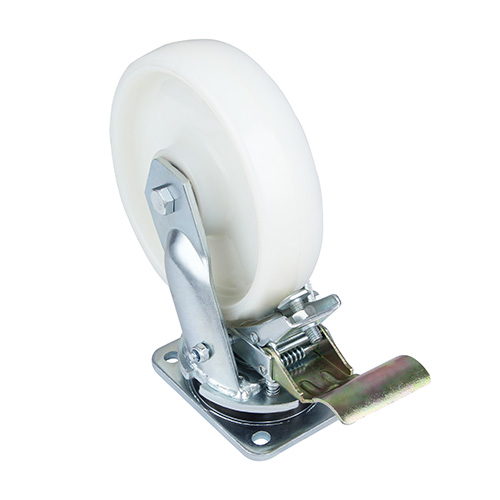

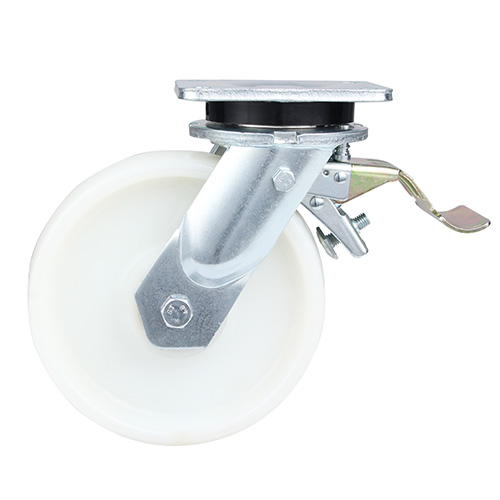

Swivel head with tapered roller bearing and axial ball bearing,welded steel fork., White injection polyamide,two ball bearings
