Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|
150 | 40 | 135x110 | 105x80 | 13.5x11 | 57 | 200 | 300 | 23P1DB150H40DUPDA6212 |
160 | 40 | 135x110 | 105x80 | 13.5x11 | 57 | 205 | 350 | 23P1DB160H40DUPDA6212 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 65 | 245 | 500 | 23P1DB200H50DUPDA6212 |

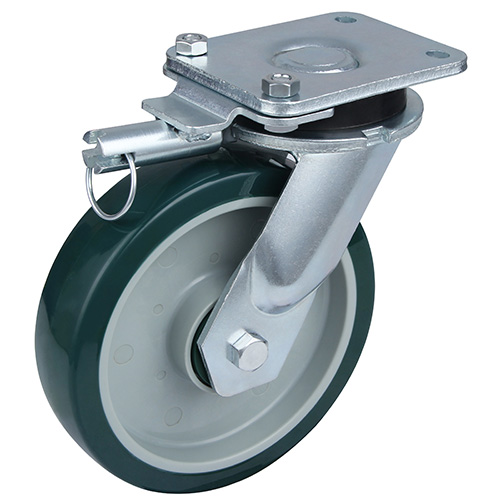

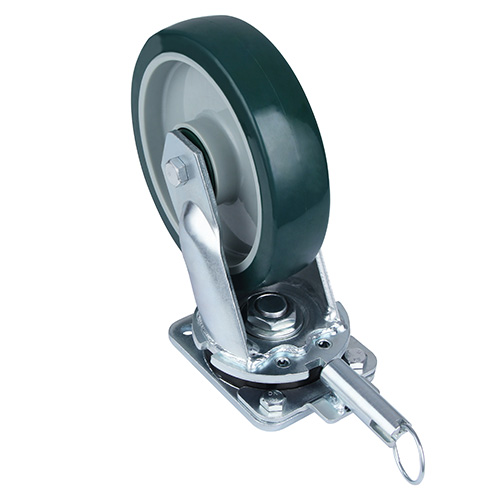

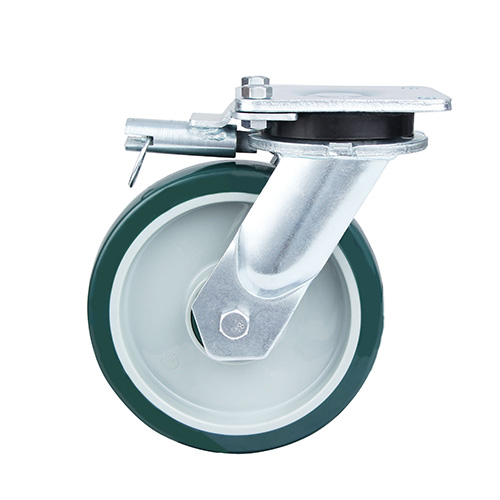

Swivel head with tapered roller bearing and axial ball bearing,welded steel fork, grey polyamide wheel centre, shore A 92 green injection polyurethane thread, two ball bearings, green samll plastic thread guards
