![]() Wheel Diameter |
![]() Width of Tread |
![]() Size of Plate |
![]() Plate hole centers |
![]() Plate hole |
![]() Offset |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|---|
150 | 40 | 135x110 | 105x80 | 13.5x11 | 57 | 200 | 300 | 23P1S150H40DUPDA6212 |
160 | 40 | 135x110 | 105x80 | 13.5x11 | 57 | 205 | 350 | 23P1S160H40DUPDA6212 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 65 | 245 | 500 | 23P1S200H50DUPDA6212 |

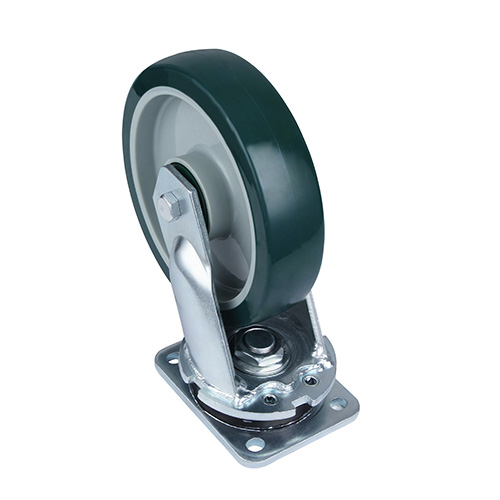

Swivel head with tapered roller bearing and axial ball bearing,welded steel fork., Grey polyamide wheel centre, shore A 92 green injection polyurethane thread, two ball bearings, green samll plastic thread guards
