![]() Wheel Diameter |
![]() Width of Tread |
![]() Size of Plate |
![]() Plate hole centers |
![]() Plate hole |
![]() Offset |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|---|
150 | 50 | 135x110 | 105x80 | 13.5x11 | 57 | 205 | 510 | 23P1DB160H50JHUDX6020 |
160 | 50 | 135x110 | 105x80 | 13.5x11 | 57 | 245 | 600 | 23P1DB200H50JHUDX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 65 | 305 | 700 | 23P1DB250H50JHUDX6020 |

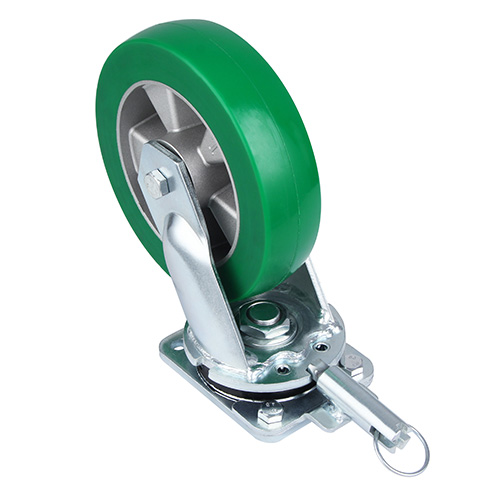

Swivel head with tapered roller bearing and axial ball bearing,welded steel fork, silvery casting-aluminium wheel centre, shore a 85 green elastic polyurethane thread, two ball bearings.
