Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|
150 | 40 | 135x110 | 105x80 | 13.5x11 | 57 | 200 | 510 | 23P1S160H50JHUDX6020 |
160 | 40 | 135x110 | 105x80 | 13.5x11 | 57 | 205 | 600 | 23P1S200H50JHUDX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 65 | 245 | 700 | 23P1S250H50JHUDX6020 |

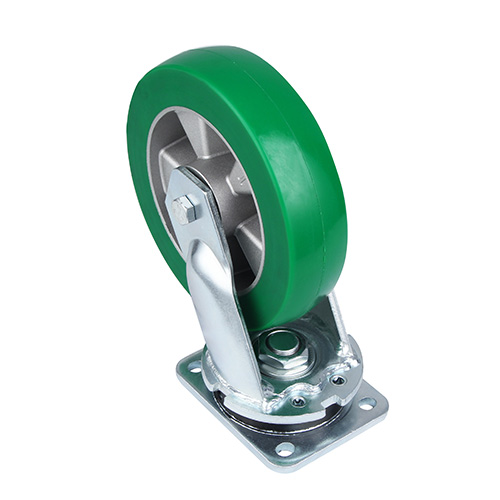

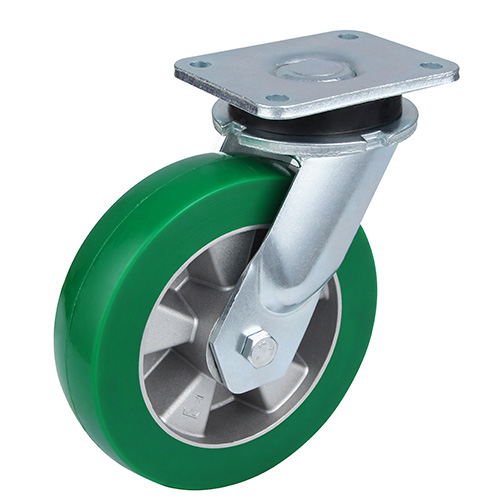

Swivel head with tapered roller bearing and axial ball bearing,welded steel fork, silvery casting-aluminium wheel centre, shore a 85 green elastic polyurethane thread, two ball bearings.
