Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|
125 | 50 | 105x80 | 80x60 | 13.5x11 | 170 | 400 | 23P1F125K50JUADX6020 |
150 | 50 | 135x110 | 105x80 | 13.5x11 | 200 | 500 | 23P1F150K50JUADX6020 |
160 | 50 | 135x110 | 105x80 | 13.5x11 | 205 | 600 | 23P1F160K50JUADX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 245 | 800 | 23P1F200K50JUADX6020 |
250 | 50 | 135x110 | 105x80 | 13.5x11 | 305 | 1000 | 23P1F250K50JUADX6020 |

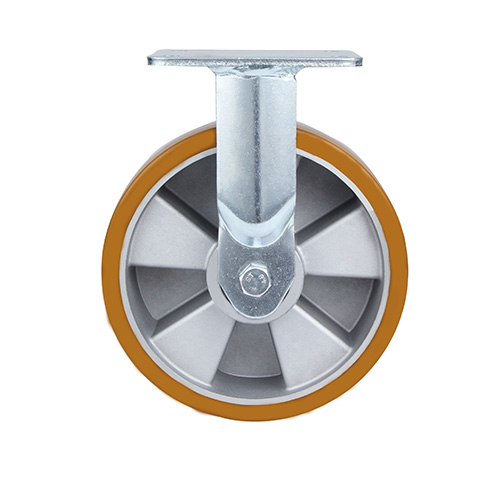

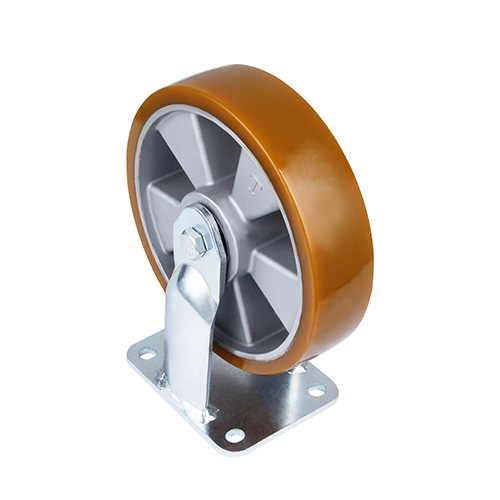

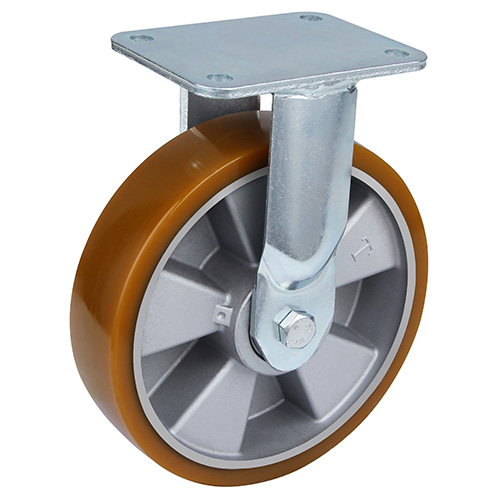

Swivel head with tapered roller bearing and axial ball bearing,welded steel fork, Silvery casting-aluminium wheel centre, shore A 92 polyurethane thread, two ball bearings
