Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|
125 | 50 | 135x110 | 105x80 | 13.5x11 | 50 | 170 | 400 | 23P1S125K50JUADX6020 |
150 | 50 | 135x110 | 105x80 | 13.5x11 | 57 | 200 | 500 | 23P1S150K50JUADX6020 |
160 | 50 | 135x110 | 105x80 | 13.5x11 | 57 | 205 | 600 | 23P1S160K50JUADX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 65 | 245 | 800 | 23P1S200K50JUADX6020 |
250 | 50 | 135x110 | 105x80 | 13.5x11 | 80 | 305 | 1000 | 23P1S250K50JUADX6020 |

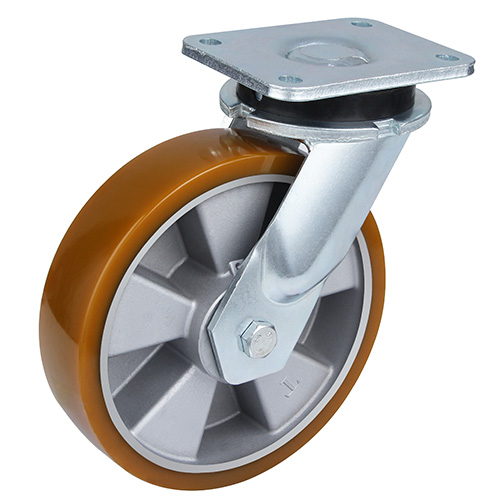

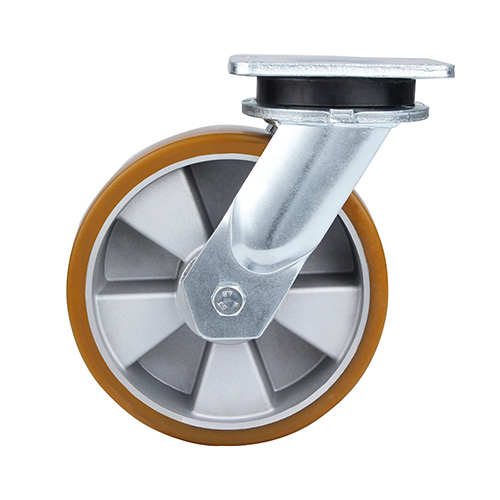

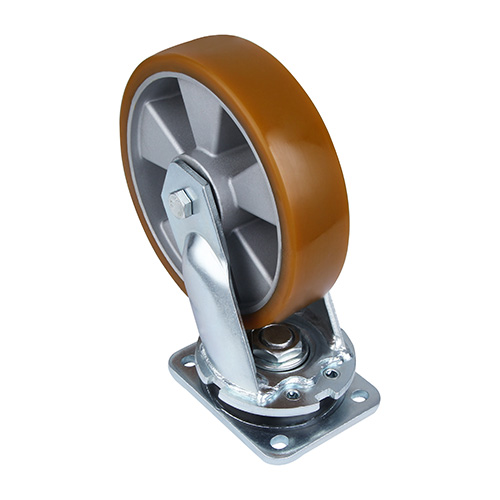

Swivel head with tapered roller bearing and axial ball bearing,welded steel fork, Silvery casting-aluminium wheel centre, shore A 92 polyurethane thread, two ball bearings
