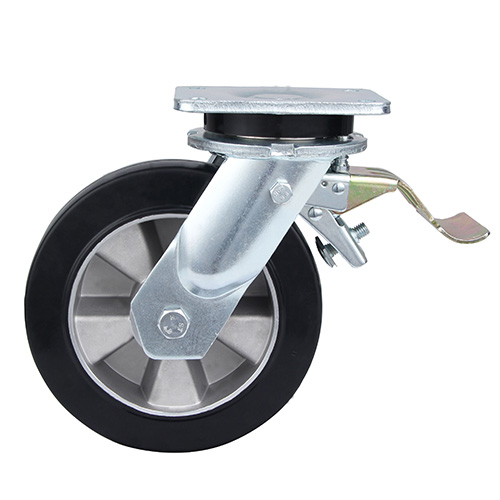

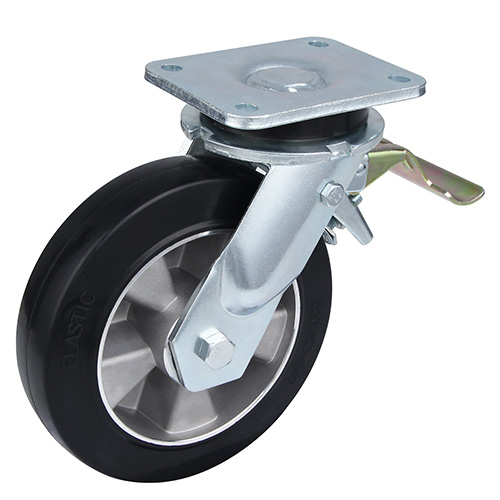

Black Elastic Rubber Super heavy Duty Swivel Castor with Front Lock

Black Elastic Rubber Super heavy Duty Swivel Castor with Front Lock

Super Heavy Duty Castors , Black

Housing

tail_brake_castors

Wheel diameter

125, 150, 160, 200, 250mm

Load capacity

280, 300, 350, 450, 550kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 68+5

Description

Swivel head with tapered roller bearing and axial ball bearing,welded steel fork., Silvery casting-aluminium wheel centre, shore A 68+5 black elastic rubber thread, two ball bearings

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Swivel radius	Overall height	Load capacity	number
125	50	135x110	105x80	13.5x11	50	148.5	170	280	23P1FB125C50JEADX6020
150	50	135x110	105x80	13.5x11	57	148.5	200	300	23P1FB150C50JEADX6020
160	50	135x110	105x80	13.5x11	57	148.5	205	350	23P1FB160C50JEADX6020
200	50	135x110	105x80	13.5x11	55	148.5	245	400	23P1FB200C50JEADX6020
250	50	135x110	105x80	13.5x11	67	148.5	305	550	23P1FB200C50JEADX6020

Swivel head with tapered roller bearing and axial ball bearing,welded steel fork., Silvery casting-aluminium wheel centre, shore A 68+5 black elastic rubber thread, two ball bearings
