 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Swivel radius |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|---|
| 160 | 50 | 135x110 | 105x80 | 13.5x11 | 57 | 148.5 | 205 | 350 | 23P1FB160C50CESDX5620 |
| 200 | 50 | 135x110 | 105x80 | 13.5x11 | 55 | 148.5 | 245 | 400 | 23P1FB200C50CESDX5620 |

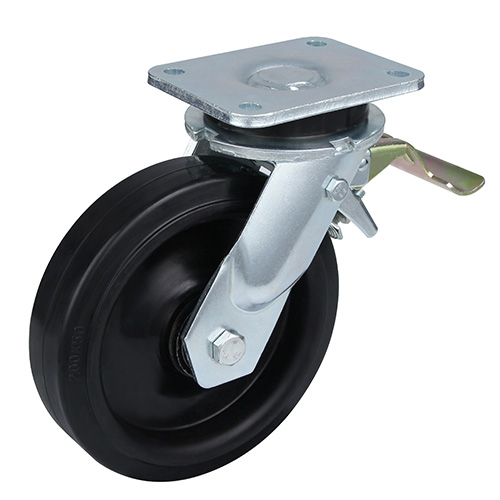

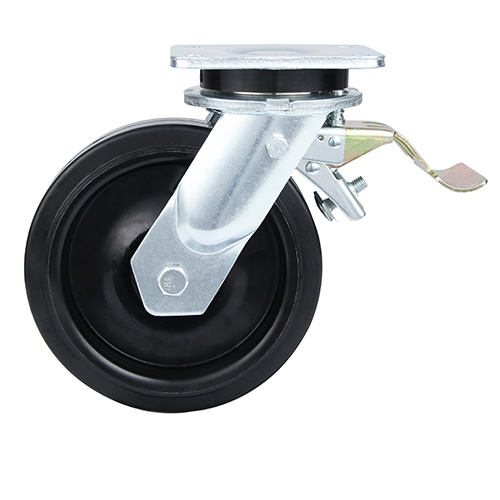

Swivel head with tapered roller bearing and axial ball bearing,welded steel fork, Black Welded Pressed steel wheel centre, 68+5 Shore A Black Elastic Rubber thread, Two Ball Bearings
