Housing
tail_brake_castors
Wheel diameter
260mm
Load capacity
150kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 85

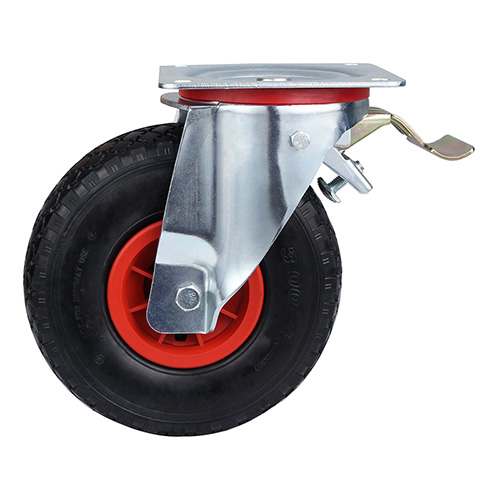

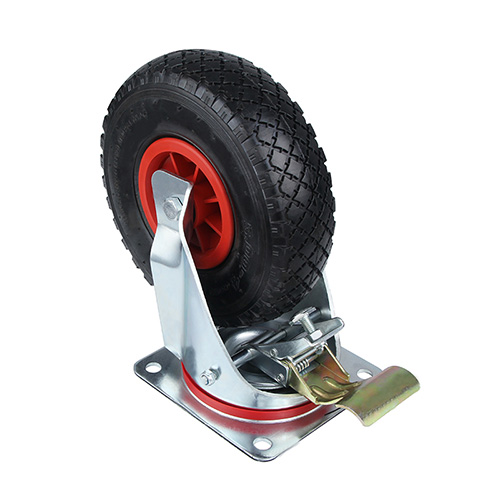

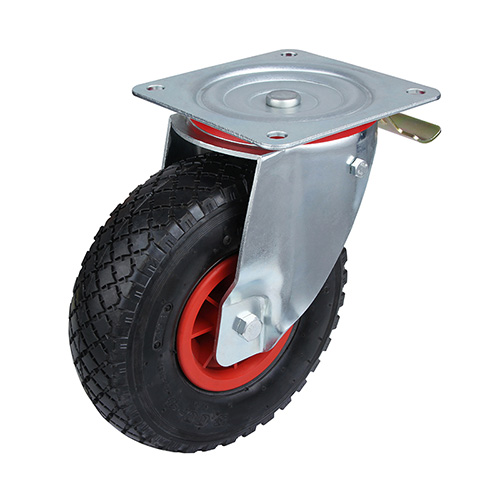

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, red polyopylene wheel centre, black pneumatic rubber thread, roller bearing
 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Swivel radius |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|---|
| 260 | 80 | 175x175 | 140x140 | ф14 | 70 | 157 | 295 | 150 | 08P1FB260C80FPRRX7520 |
Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, red polyopylene wheel centre, black pneumatic rubber thread, roller bearing
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
