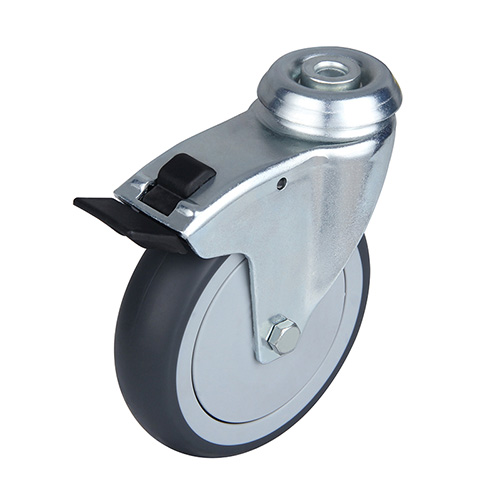

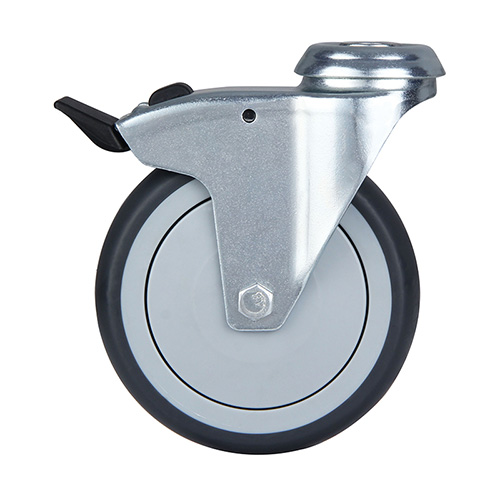

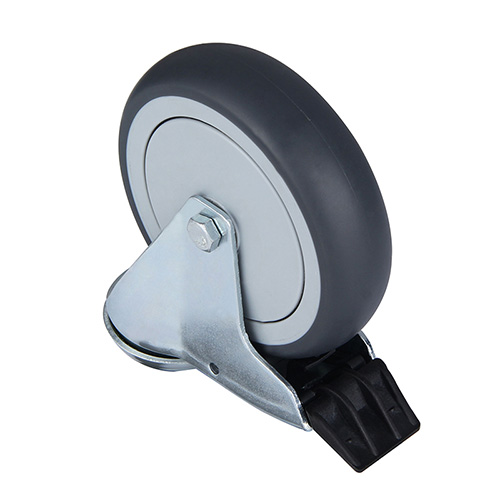

Grey Thermoplastic Rubber Institutional Swivel Castor with Bolt Hole and Total Lock Grey Thermoplastic Rubber Institutional Swivel Castor with Bolt Hole and Total Lock
Grey Thermoplastic Rubber Institutional Swivel Castor with Bolt Hole and Total Lock Grey Thermoplastic Rubber Institutional Swivel Castor with Bolt Hole and Total Lock
Grey Thermoplastic Rubber Institutional Swivel Castor with Bolt Hole and Total Lock Grey Thermoplastic Rubber Institutional Swivel Castor with Bolt Hole and Total Lock

Grey Thermoplastic Rubber Institutional Swivel Castor with Bolt Hole and Total Lock

Housing

bolt_hole_castors_with_total_brake

Wheel diameter

75, 100, 125mm

Load capacity

75, 100, 100kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 85

Description

Pressed steel fork assembly, zinc-plated swivel head with double ball race and sealing, grey polypropylene wheel centre, dark grey shore A 85

Chat Now

TECHNICAL DATA


Wheel Diameter

Width of Tread

Offset

Hole center

Swivel raidus

Overall height

Load capacity
number
75 28 30.5 ф10.5/ф13 98.5 100.5 75 18H1TB75D28DTPBB378
100 32 40 ф10.5/ф13 112 134.5 100 18H1TB100D32DTPBB378
125 32 43 ф10.5/ф13 118 159.5 100 18H1TB125D32DTPBB378

Pressed steel fork assembly, zinc-plated swivel head with double ball race and sealing, grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber tread, central ball bearing , grey plastic thread guards

Suitable Floor
Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor

Quality & Service since 18 Year

Our quality is creating an easier work-life for the user of the wheel.

Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
