 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Swivel radius |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|---|
| 75 |
28 |
77x67 | 55.7x46.5 | 16x8.5 | 30.5 | 98.5 | 103 | 75 | 18P1TB75D28DTPBB378 |
| 75 |
28 |
105X80 | 80X60 | 16x8.5 | 30.5 | 98.5 | 103 | 75 | 18P1TB/S75D28DTPBB378 |
| 100 | 32 | 77x67 | 55.7x46.5 | 16X8.5 | 40 | 112 | 137 | 100 | 18P1TB100D32DTPBB378 |
| 100 | 32 | 105x80 | 80x60 | 16X8.5 | 40 | 112 | 137 | 100 | 18P1TB/S100D32DTPBB378 |
| 125 | 32 | 77x67 | 55.7x46.5 | 16X8.5 | 43 | 118 | 162 | 100 | 18P1TB125D32DTPBB378 |
| 125 | 32 | 105X80 | 105x80 | 16X8.5 | 43 | 118 | 162 | 100 | 18P1TB/S125D32DTPBB378 |

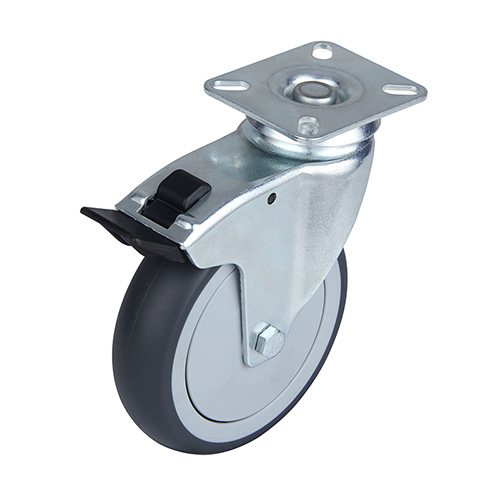

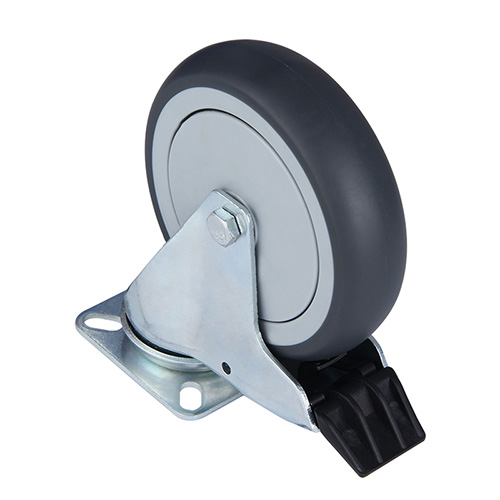

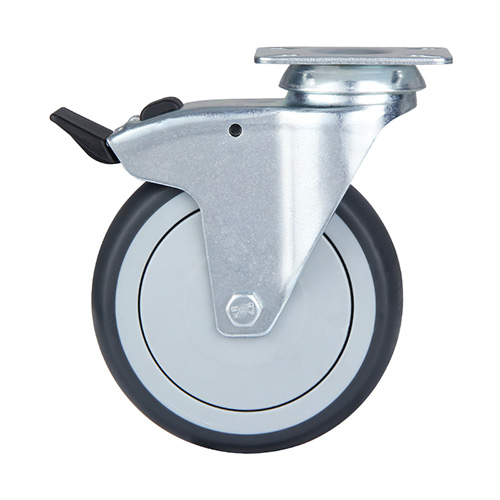

Pressed steel fork assembly, zinc-plated swivel head with double ball race and sealing, grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber tread, central ball bearing , grey plastic thread guards
