![]() Wheel Diameter |
![]() Width of Tread |
![]() Size of Plate |
![]() Plate hole centers |
![]() Plate hole |
![]() Offset |
![]() Swivel radius |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
75 |
28 |
96x90 | 77/55x70 | 10.2 | 30.5 | 100.5 | 97-106 | 75 | 18P1TB/S75D28DTPPD3612 |
100 | 32 | 96x90 | 77/55x70 | 10.2 | 40 | 113.5 | 118-127 | 100 | 18P1TB/S100D32DTPPD3612 |
125 | 32 | 96x90 | 77/55x70 | 10.2 | 43 | 120.5 | 130-139 | 100 | 18P1TB/S125D32DTPPD3612 |

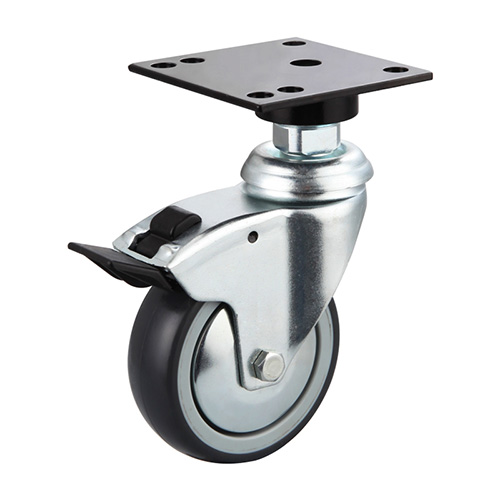

Pressed steel fork assembly, zinc-plated swivel head with double ball race and sealing, grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber tread, central ball bearing , grey plastic thread guards
