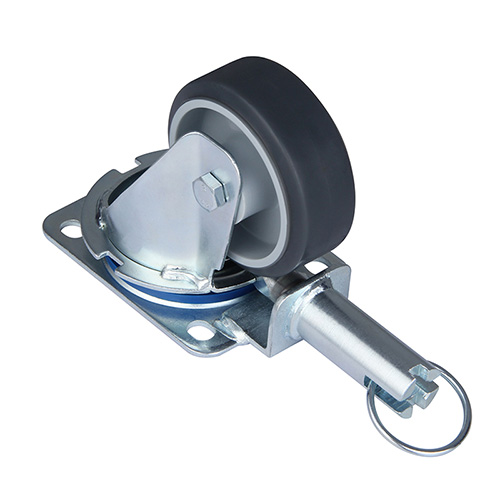

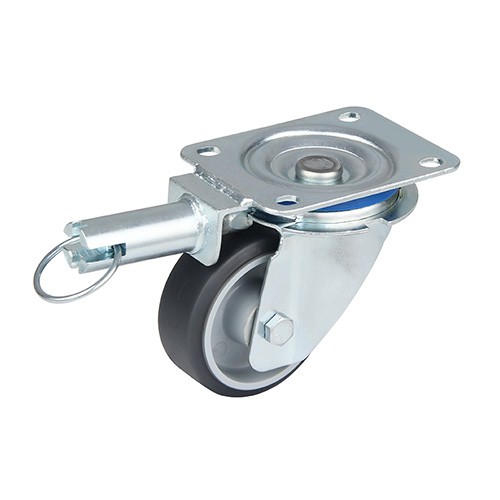

Grey Thermoplastic Rubber Swivel Castor with Directional Lock with Roller Bearing

Grey Thermoplastic Rubber Swivel Castor with Directional Lock with Roller Bearing

Industrial Castors , Grey

Housing

directional_lock_castors

Wheel diameter

80, 100, 100mm

Load capacity

100, 120, 120kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 85

Description

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Swivel radius	Overall height	Load capacity	number
80	32	105x80	80x60	11x9	36	145	100	100	07P1DB80D32DTRRX4012
100	32	105x80	80x60	11x9	36	145	125	120	07P1DB100D32DTRRX4012
100	32	105x80	80x60	11x9	36	145	128	120	07P1DB/S100D32DTRRX4012

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber thread, Roller bearing
