Housing
swivel_castors
Wheel diameter
100, 125mm
Load capacity
350kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 85

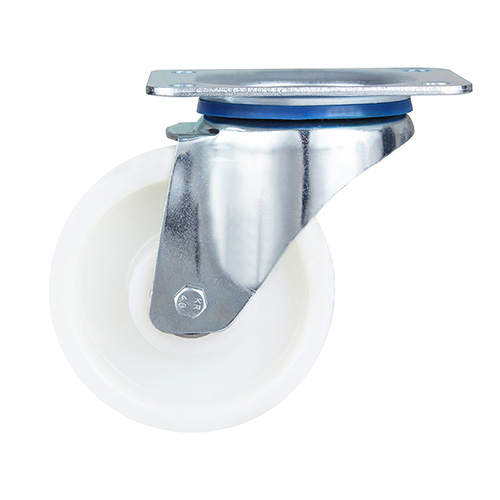

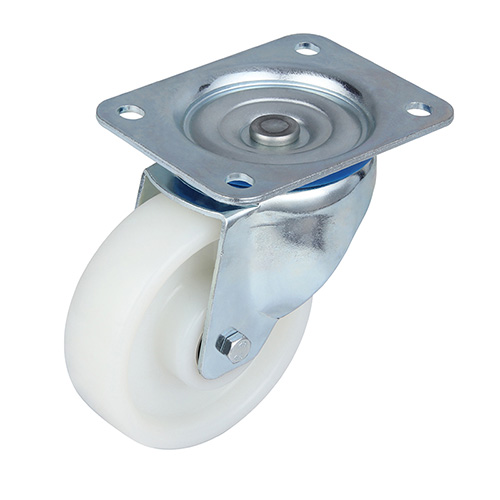

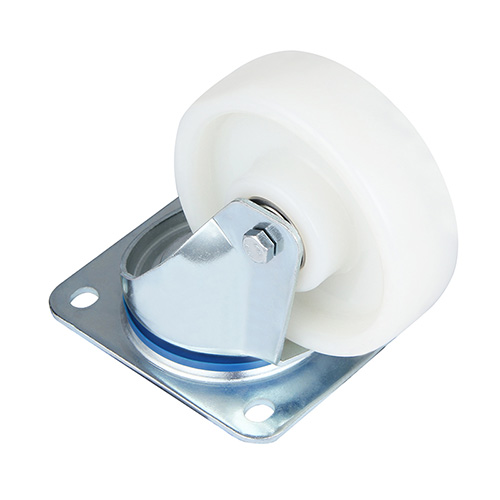

Pressed steel swivel fork , zinc-plated, double ball race ,sealed in the swviel head, white injection polyamide, two ball bearings
 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|
| 100 | 38 | 135x110 | 105x80 | 13.5X11 | 45 | 128 | 350 | 06P1S100B38BPHDX5015 |
| 125 | 38 | 135x110 | 105x80 | 13.5X11 | 48 | 155 | 350 | 06P1S125B38BPHDX5015 |
| 125 | 38 | 135x110 | 105x80 | 13.5X11 | 48 | 155 | 350 | 06P1S/S125B38BPHDX5015 |
