Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|
80 | 34 | 102x87 | 80x60 | 11X9 | 100 | 150 | 07P1F80B34BPABA428 |
100 | 36 | 102x87 | 80x60 | 11X9 | 125 | 180 | 07P1F100B36BPABA428 |
100 | 36 | 102x87 | 80x60 | 11X9 | 128 | 180 | 07P1F/S100B36BPABA428 |
125 | 40 | 102x87 | 80x60 | 11X9 | 155 | 250 | 07P1F125B40BPABA5210 |

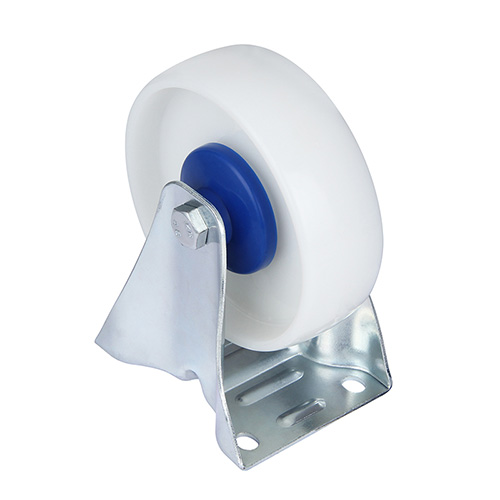

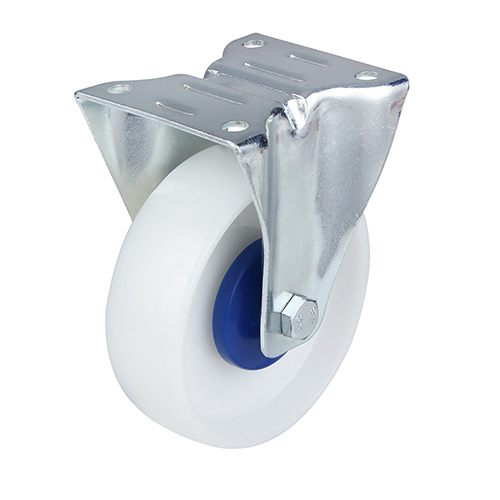

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, White Injection Polyamide,Central ball bearing, Blue samll Plastic thread guards
