White Polyamide Swivel Castor with Blue Samll Plastic Thread Guards

White Polyamide Swivel Castor with Blue Samll Plastic Thread Guards

Industrial Castors , White

Housing

swivel_castors

Wheel diameter

80, 100, 100, 125mm

Load capacity

150, 180, 180, 250kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 92

Description

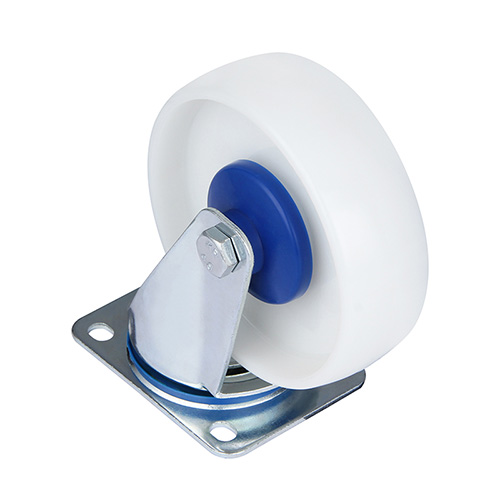

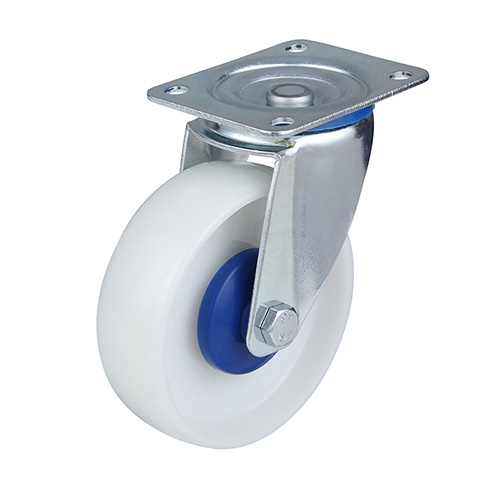

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, White Injection Polyamide,Central ball bearing, Blue samll Plastic thread guards

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Overall height	Load capacity	number
80	34	105x80	80x60	11X9	36	100	150	07P1S80B34BPABA428
100	36	105x80	80x60	11X9	36	125	180	07P1S100B36BPABA428
100	36	105x80	80x60	11X9	36	128	180	07P1S/S100B36BPABA428
125	34	105x80	80x60	11X9	36	155	250	07P1S125B40BPABA5210

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, White Injection Polyamide,Central ball bearing, Blue samll Plastic thread guards
