![]() Wheel Diameter |
![]() Width of Tread |
![]() Size of Plate |
![]() Plate hole centers |
![]() Plate hole |
![]() Offset |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|---|
160 | 46 | 135x110 | 105x80 | 13.5x11 | 52 | 190 | 500 | 09P1DB160B50BPHDX6020 |
160 | 46 | 135x110 | 105x80 | 13.5x11 | 52 | 200 | 500 | 09P1DB/S160B50BPHDX6020 |
200 | 46 | 135x110 | 105x80 | 13.5x11 | 54 | 235 | 500 | 09P1DB200B50BPHDX6020 |
200 | 46 | 135x110 | 105x80 | 13.5x11 | 54 | 245 | 600 | 09P1DB/S200B50BPHDX6020 |

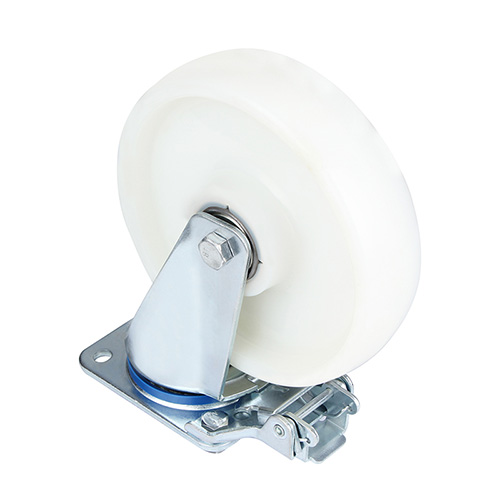

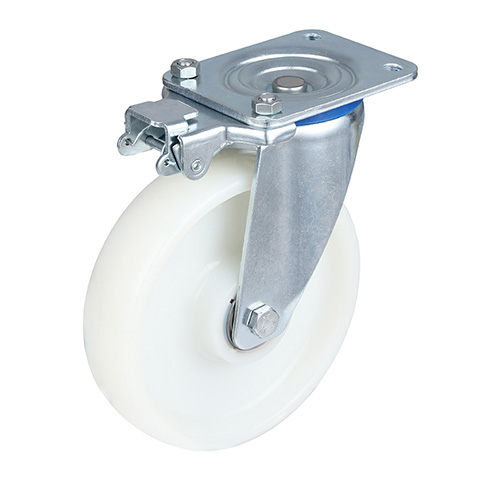

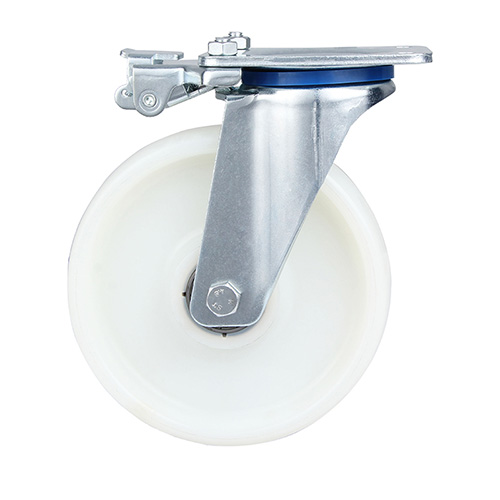

Pressed steel swivel fork, zinc-plated double ball race ,sealed in the swviel head, white injection polyamide, two ball bearings
