 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Swivel radius |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|---|
| 160 | 50 | 135x110 | 105x80 | 13.5x11 | 52 | 154 | 190 | 500 | 09P1FB160B50BPHDX6020 |
| 160 | 50 | 135x110 | 105x80 | 13.5x11 | 52 | 154 | 200 | 500 | 09P1FB/S160B50BPHDX6020 |
| 200 | 50 | 135x110 | 105x80 | 13.5x11 | 54 | 154 | 235 | 500 | 09P1FB200B50BPHDX6020 |
| 200 | 50 | 135x110 | 105x80 | 13.5x11 | 54 | 154 | 245 | 600 | 09P1FB/S200B50BPHDX6020 |

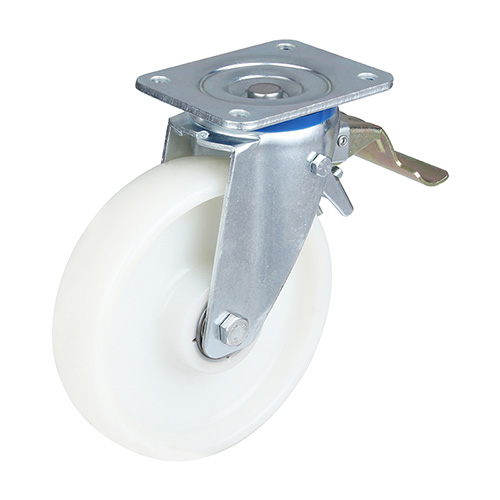

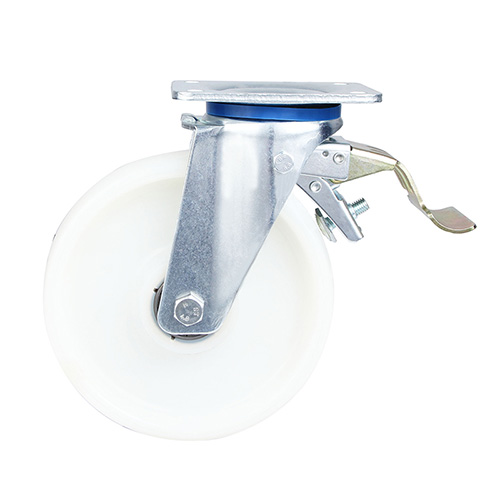

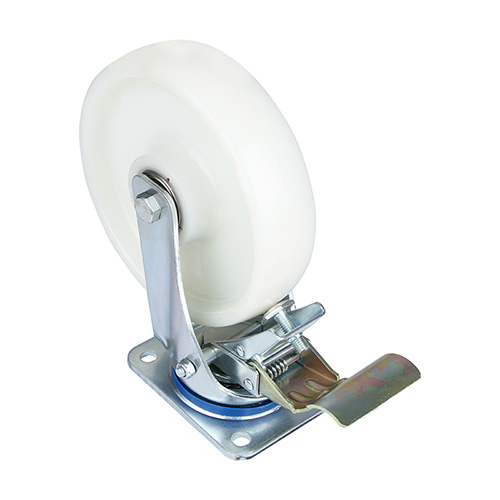

Pressed steel swivel fork, zinc-plated double ball race ,sealed in the swviel head, white injection polyamide, two ball bearings
