Housing
bolt_hole_castors_with_total_brake
Wheel diameter
100, 125mm
Load capacity
270, 310kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 92

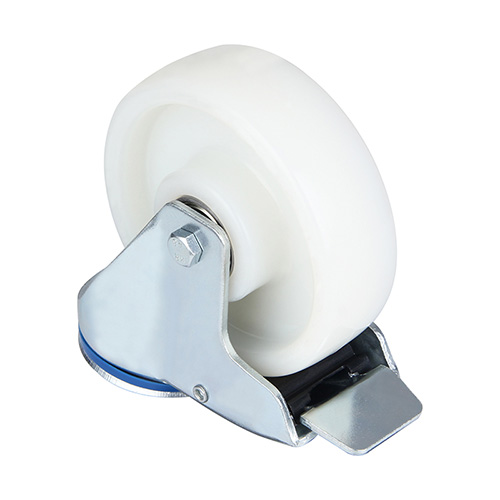

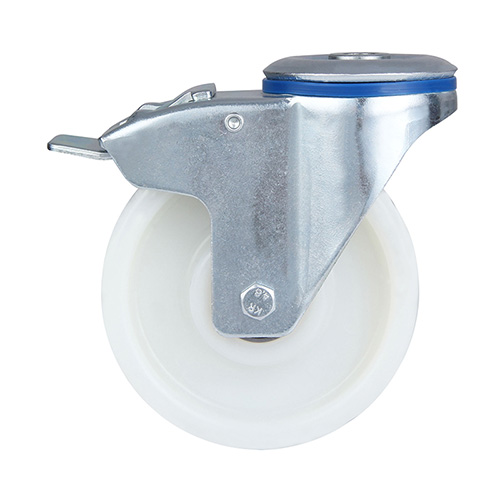

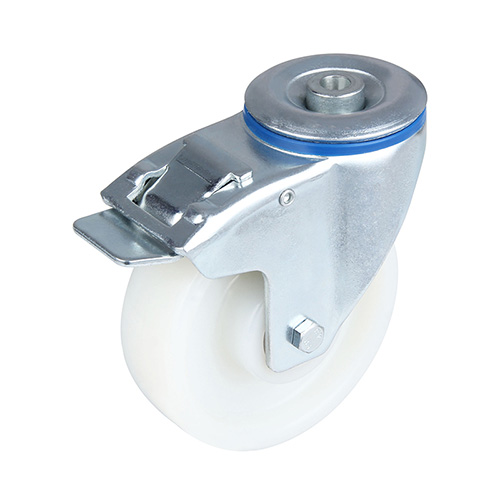

Pressed steel swivel fork, zinc-plated double ball race ,sealed in the swviel head, white injection polyamide, two ball bearings
 Wheel Diameter |
 Width of Tread |
 Hole center |
 Offset |
 Swivel raidus |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|
| 100 | 38 | ф10.5/ф13 | 40 | 122 | 132 | 270 | 09H1TB100B38BPHDX4015 |
| 125 | 38 | ф10.5/ф13 | 40 | 122 | 155 | 310 | 09H1TB125B38BPHDX5015 |
Pressed steel swivel fork, zinc-plated double ball race ,sealed in the swviel head, white injection polyamide, two ball bearings
Tile Floor
Resin Cement Floor
