Wheel Diameter |
Width of Tread |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|
80 | 34 |
ф10.5/ф13 |
36 | 99 | 150 | 07H1S80B34BPARX4012 |
100 | 36 |
ф10.5/ф13 |
36 | 127 | 180 | 07H1S100B36BPARX4012 |
125 | 40 |
ф10.5/ф13 |
36 | 154 | 250 | 07H1S125B40BPARX5015 |
160 | 40 | ф16 | 52 | 185 | 300 | 07H1S160B40BPARX6020 |
200 | 46 | ф16 | 54 | 230 | 350 | 07H1S200B46BPARX6020 |

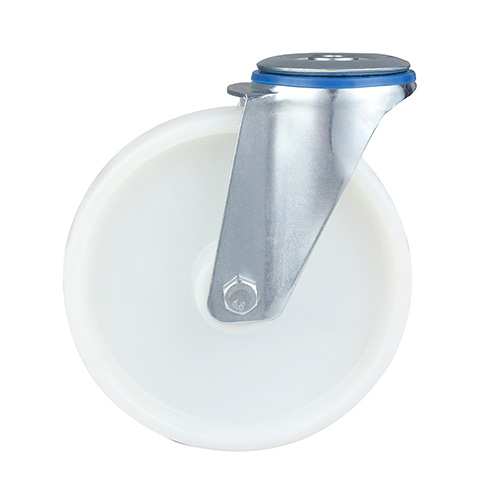

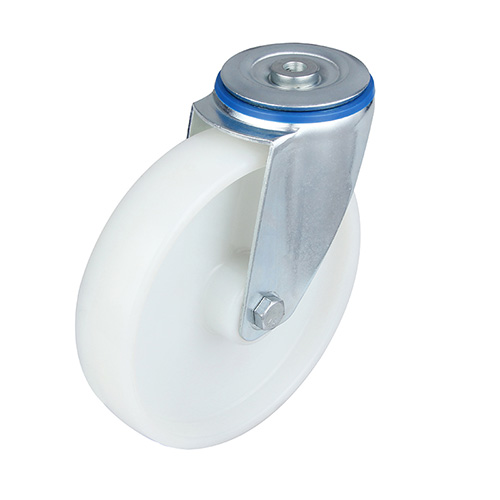

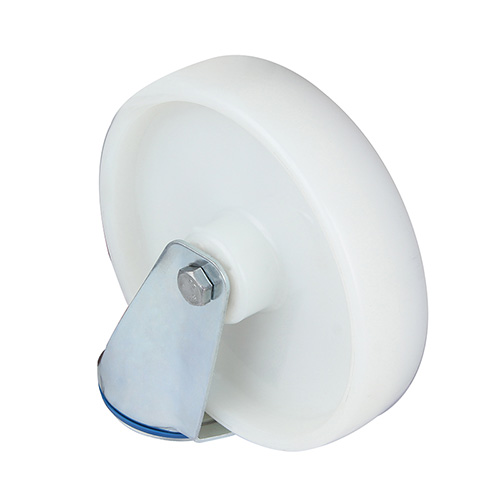

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, white injection polyamide, roller bearing
