Housing
fixed_castors_with_tail_brake
Wheel diameter
160mm
Load capacity
250kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 92c

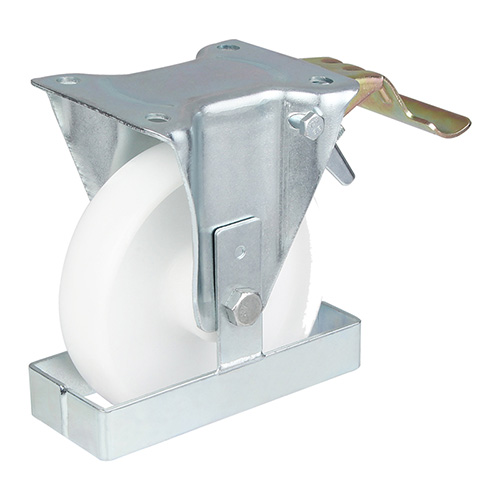

Pressed steel swivel fork assembly, zinc-plated, swivel head with double ball race, white injection polyopylene, roller bearing
 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|
| 160 | 40 | 135x114 | 105x80 | 13.5x11 | 195 | 250 | 07P1F/FB160B40BPPRX6020 |
Pressed steel swivel fork assembly, zinc-plated, swivel head with double ball race, white injection polyopylene, roller bearing
Tile Floor
Resin Cement Floor
