Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Swivel radius |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
160 | 40 | 135x110 | 105x80 | 13.5x11 | 52 | 156 | 190 | 250 | 07P1CBB160B40BPPRX6020 |
200 | 46 | 135x110 | 105x80 | 13.5x11 | 54 | 156 | 235 | 300 | 07P1CBB200B46BPPRX6020 |

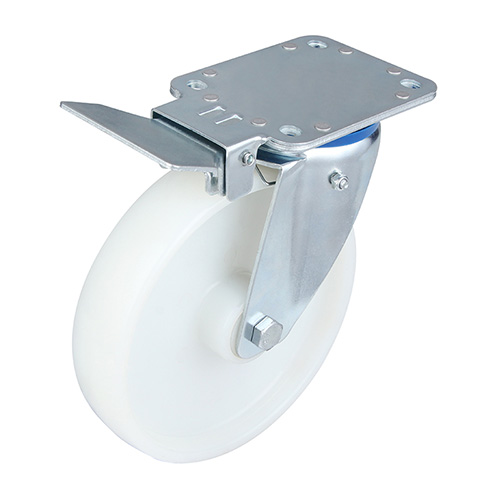

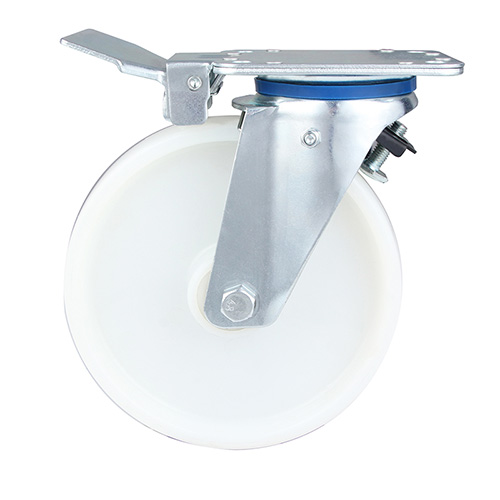

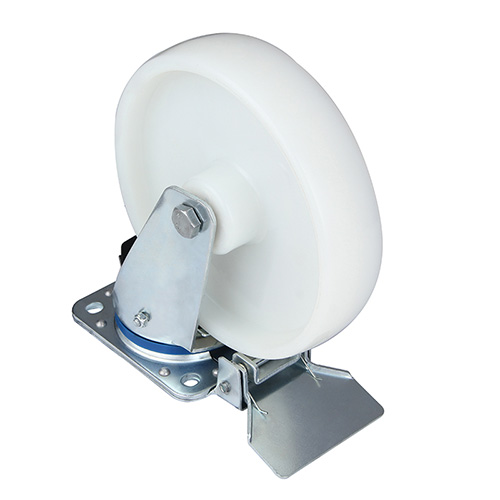

Pressed steel swivel fork assembly, zinc-plated, swivel head with double ball race, white injection polyopylene, roller bearing
