Housing
directional_lock_castors
Wheel diameter
160, 200mm
Load capacity
250, 300kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 92c

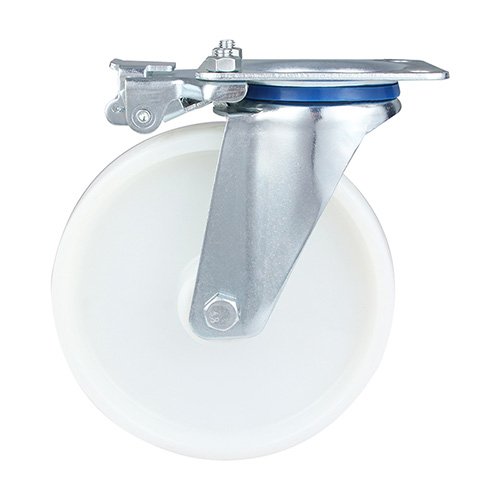

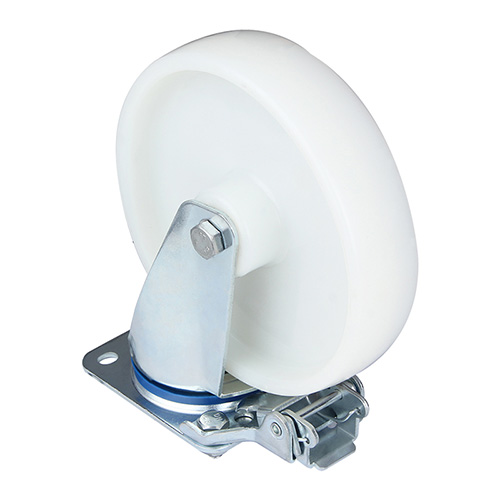

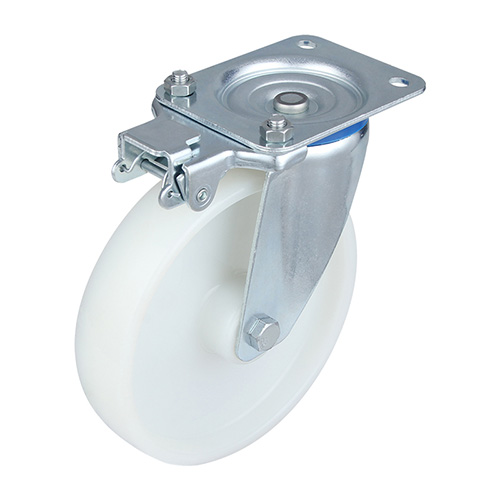

Pressed steel swivel fork assembly, zinc-plated, swivel head with double ball race, white injection polyopylene, roller bearing
 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|
| 160 | 40 | 135x110 | 105x80 | 13.5x11 | 52 | 190 | 250 | 07P1DB160B40BPPRX6020 |
| 200 | 46 | 135x110 | 105x80 | 13.5x11 | 54 | 235 | 300 | 07P1DB160B40BPPRX6020 |
Pressed steel swivel fork assembly, zinc-plated, swivel head with double ball race, white injection polyopylene, roller bearing
