![]() Wheel Diameter |
![]() Width of Tread |
![]() Size of Plate |
![]() Plate hole centers |
![]() Plate hole |
![]() Offset |
![]() Swivel radius |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
80 | 34 | 105x80 | 80x60 | 11x9 | 36 | 145 | 100 | 110 | 07P1DB80B34BPPRX4012 |
100 | 36 | 105x80 | 80x60 | 11x9 | 40 | 145 | 125 | 130 | 07P1DB100B36BPPRX4012 |
100 | 36 | 105x80 | 80x60 | 11x9 | 40 | 145 | 125 | 130 | 07P1DB/S100B36BPPRX4012 |

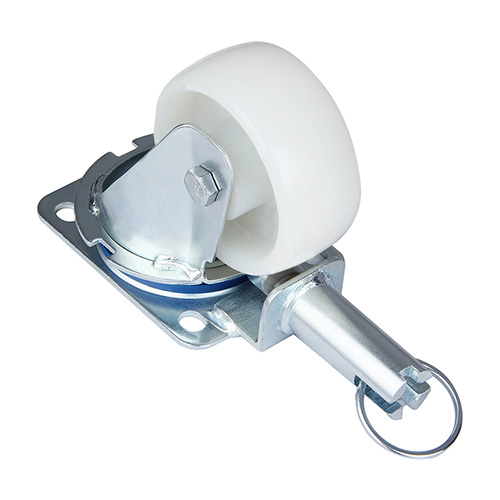

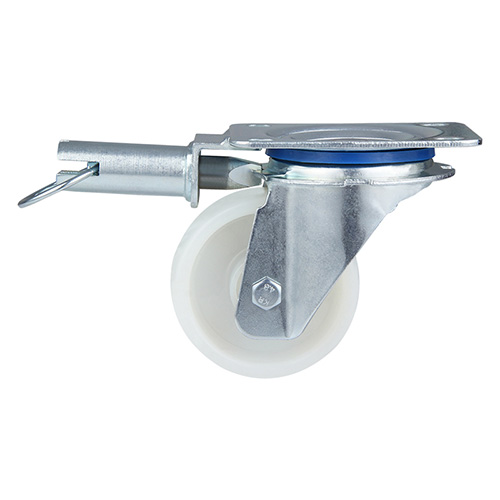

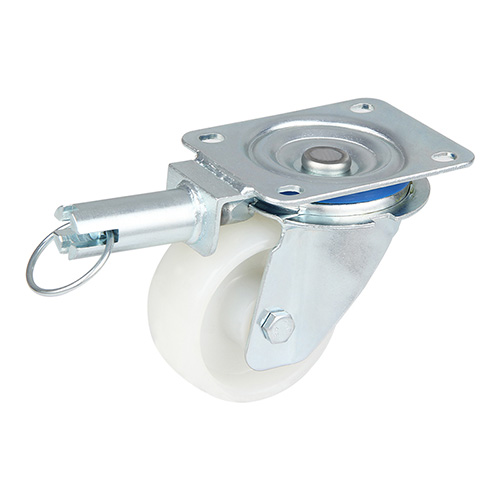

Pressed steel swivel fork assembly, zinc-plated, swivel head with double ball race, white injection polyopylene, roller bearing
