 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Swivel radius |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|---|
| 80 | 34 | 105x80 | 80x60 | 11x9 | 36 | 129 | 100 | 110 | 07P1TB80B34BPPRX4012 |
| 100 | 36 | 105x80 | 80x60 | 11x9 | 40 | 132 | 125 | 130 | 07P1TB100B36BPPRX4012 |
| 100 | 36 | 105x80 | 80x60 | 11x9 | 40 | 132 | 128 | 130 | 07P1TB/S100B36BPPRX4012 |
| 125 | 40 | 105x80 | 80x60 | 11x9 | 40 | 134 | 155 | 160 | 07P1TB125B40BPPRX5015 |
| 160 | 40 | 135x110 | 105x80 | 13.5x11 | 60 | 203 | 190 | 250 | 07P1TB160B40BPPRX6020 |
| 200 | 46 | 135x110 | 105x80 | 13.5x11 | 60 | 203 | 235 | 300 | 07P1TB200B46BPPRX6020 |

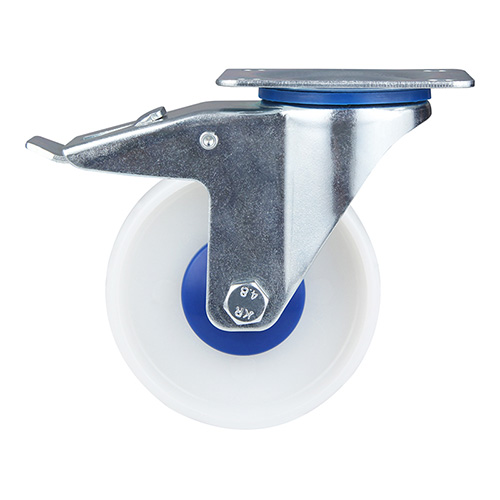

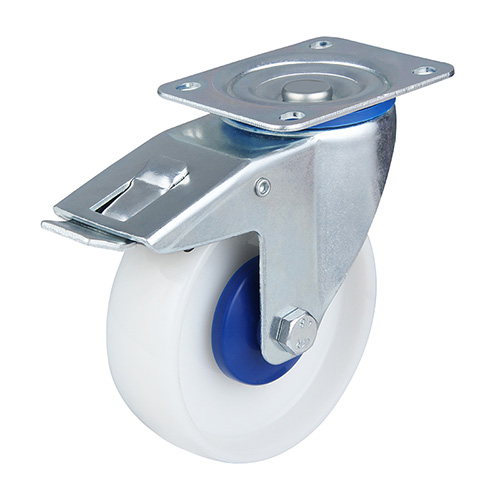

Pressed steel swivel fork assembly, zinc-plated, swivel head with double ball race, white injection polyopylene, roller bearing
