![]() Wheel Diameter |
![]() Width of Tread |
![]() Size of Plate |
![]() Plate hole centers |
![]() Plate hole |
![]() Offset |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|---|
80 | 34 | 105x80 | 80x60 | 11x9 | 36 | 100 | 110 | 07P1S80B34BPPRX4012 |
100 | 36 | 105x80 | 80x60 | 11x9 | 36 | 125 | 130 | 07P1S100B36BPPRX4012 |
100 | 36 | 105x80 | 80x60 | 11x9 | 36 | 125 | 130 | 07P1S/S100B36BPPRX4012 |
125 | 40 | 105x80 | 80x60 | 11x9 | 40 | 155 | 160 | 07P1S125B40BPPRX5015 |

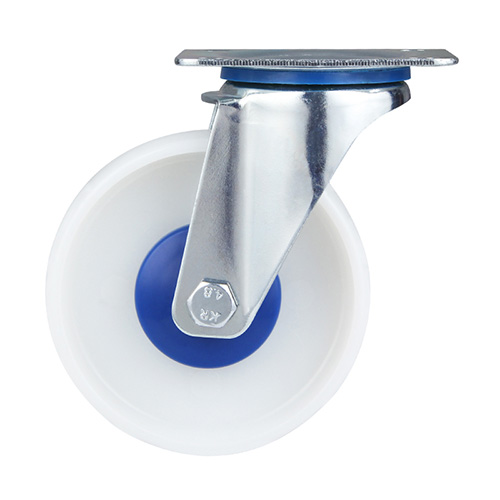

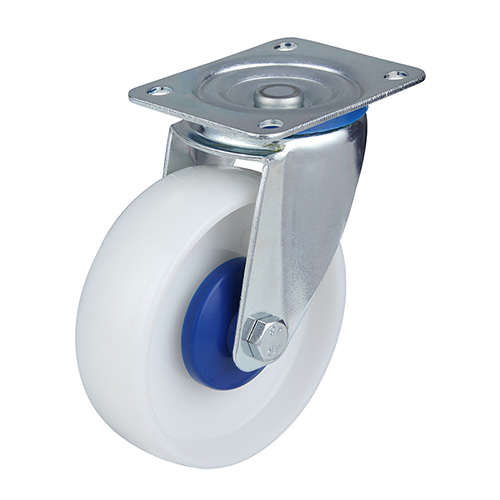

Pressed steel swivel fork assembly, zinc-plated, swivel head with double ball race, white injection polyopylene ,central ball bearing, blue samll plastic thread guards
