Wheel Diameter |
Width of Tread |
Offset |
Hole center |
Swivel raidus |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|
80 | 34 | 36 | ф10.5/ф13 | 129 | 99 | 150 | 07H1TB80F34BUPRX4012 |
100 | 34 | 40 | ф10.5/ф13 | 132 | 124 | 180 | 07H1TB100F34BUPRX4012 |
100 | 34 | 40 | ф10.5/ф13 | 132 | 124 | 180 | 07H1TB/S100F34BUPRX4012 |
125 | 34 | 40 | ф10.5/ф13 | 134 | 154 | 250 | 07H1TB125F36BUPRX5015 |
160 | 34 | 60 | ф16 | 203 | 154 | 300 | 07H1TB160F40BUPRX6020 |
200 | 50 | 60 | ф16 | 203 | 230 | 350 | 07H1TB200F50BUPRX6020 |

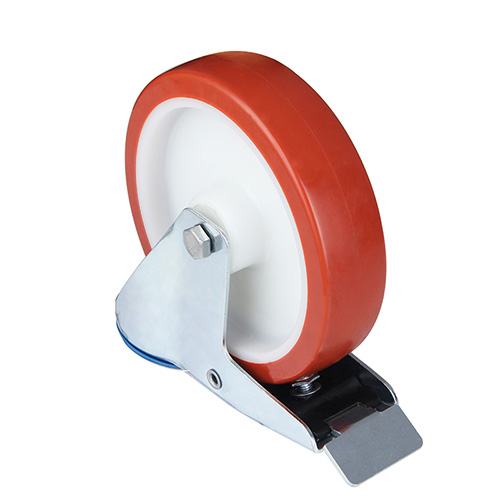

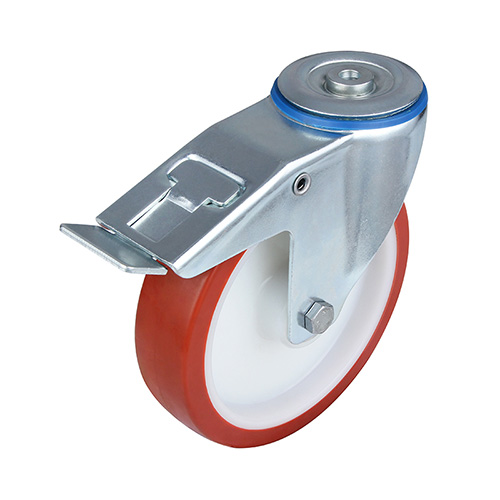

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, white polyamide wheel centre, shore a 92 red injection polyurethane tread, roller bearing
