Wheel Diameter |
Width of Tread |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|
80 | 34 | 36 | ф10.5/ф13 | 99 | 150 | 07H1S80F34BUPRX4012 |
100 | 34 | 36 | ф10.5/ф13 | 124 | 180 | 07H1S100F34BUPRX4012 |
100 | 34 | 36 | ф10.5/ф13 | 124 | 180 | 07H1S/S100F34BUPRX4012 |
125 | 36 | 36 | ф10.5/ф13 | 154 | 250 | 07H1S125F36BUPRX5015 |
160 | 40 | 52 | ф16 | 185 | 300 | 07H1S160F40BUPRX6020 |
200 | 50 | 54 | ф16 | 230 | 350 | 07H1S200F50BUPRX6020 |

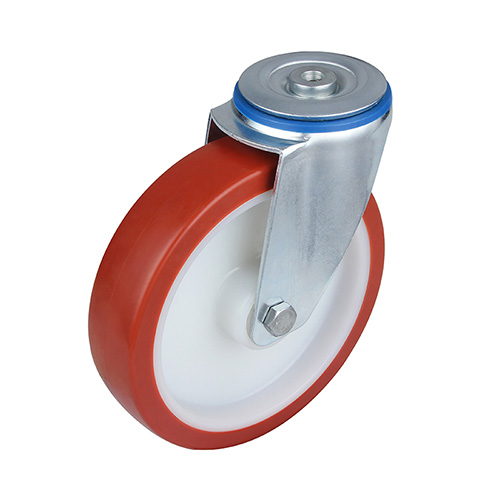

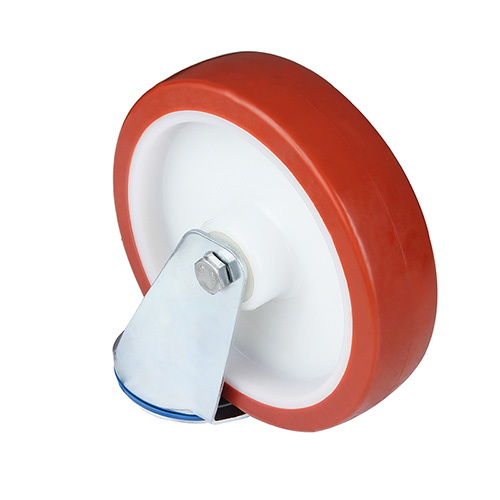

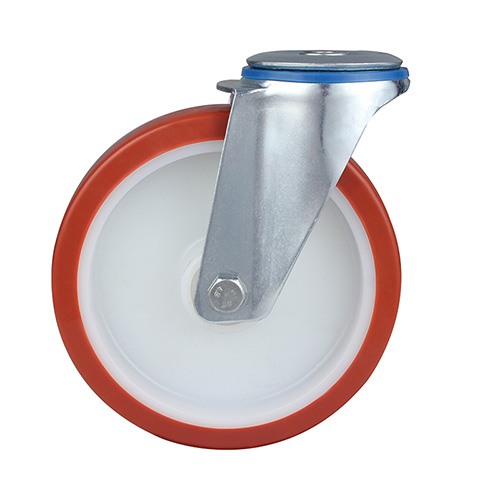

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, white polyamide wheel centre, shore a 92 red injection polyurethane tread, roller bearing
