 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Swivel radius |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|---|
| 160 | 40 | 135x110 | 105x80 | 13.5x11 | 52 | 154 | 190 | 200 | 07P1CB160D40DTERX6020 |
| 200 | 50 | 135x110 | 105x80 | 13.5x11 | 54 | 154 | 235 | 220 | 07P1CB200D40DTERX6020 |

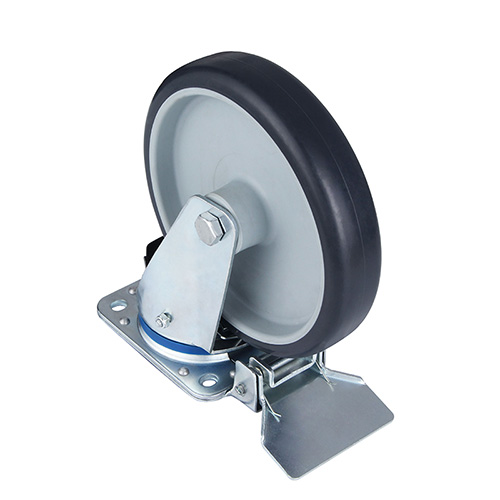

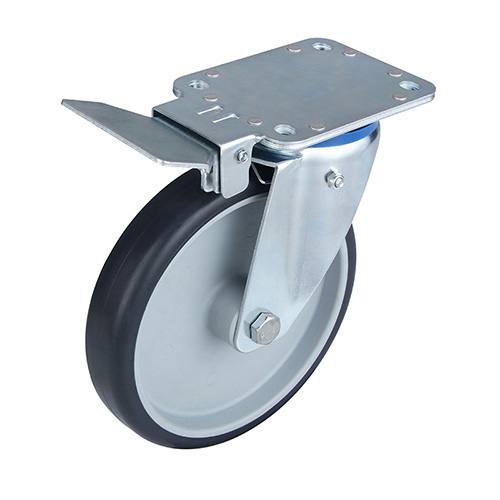

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber tread, roller bearing
