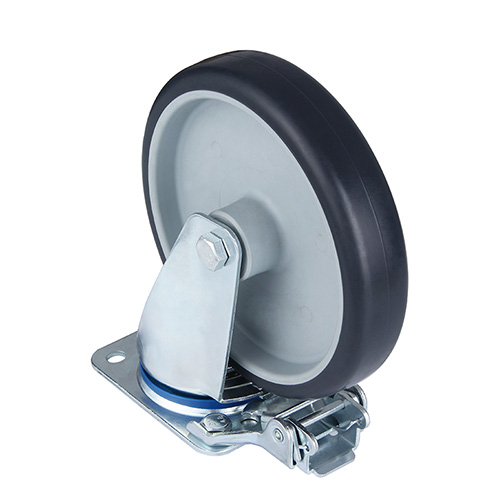

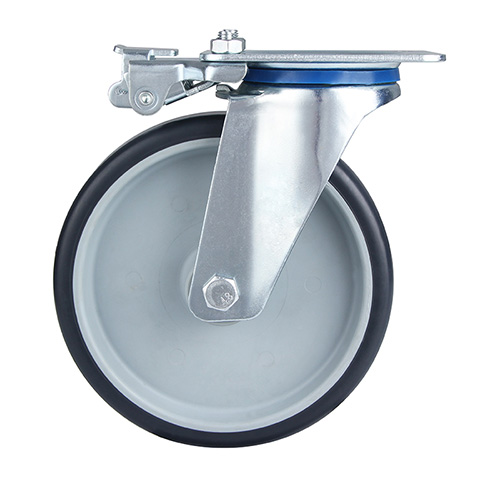

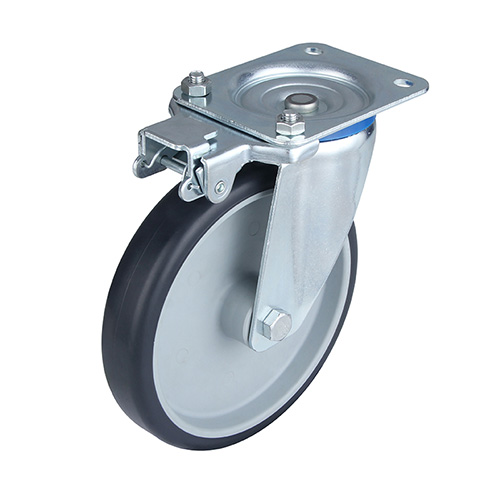

Grey Thermoplastic Rubber Swivel Castor with Directional Lock Grey Thermoplastic Rubber Swivel Castor with Directional Lock
Grey Thermoplastic Rubber Swivel Castor with Directional Lock Grey Thermoplastic Rubber Swivel Castor with Directional Lock
Grey Thermoplastic Rubber Swivel Castor with Directional Lock Grey Thermoplastic Rubber Swivel Castor with Directional Lock

Grey Thermoplastic Rubber Swivel Castor with Directional Lock

Housing

directional_lock_castors

Wheel diameter

160, 200mm

Load capacity

200, 220kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 85

Description

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85

Chat Now

TECHNICAL DATA


Wheel Diameter

Width of Tread

Size of Plate

Plate hole centers

Plate hole

Offset

Overall height

Load capacity
number
160 40 135x110 105x80 13.5x11 52 190 200 07P1DB160D40DTERX6020
200 40 135x110 105x80 13.5x11 54 235 220 07P1DB200D40DTERX6020

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber tread, roller bearing

Suitable Floor
Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor
