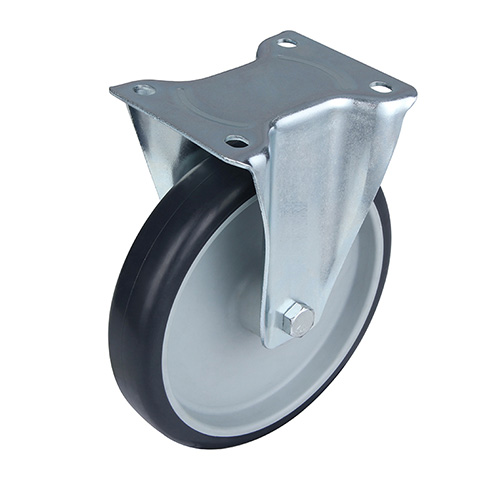

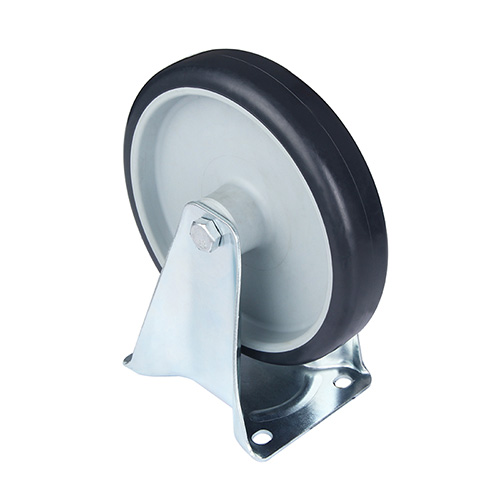

Grey Thermoplastic Rubber Fixed Castor

Industrial Castors , Grey

Housing

fixed_castors

Wheel diameter

80, 100, 100, 125, 160, 200mm

Load capacity

100, 125, 128, 150, 200, 220kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 85

Description

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Overall height	Load capacity	number
80	32	102x87	80x60	11X9	100	100	07P1F80D38DTERX4012
100	32	102x87	80x60	11X9	125	100	07P1F100D32DTERX4012
100	32	102x87	80x60	11X9	128	100	07P1F/S100D32DTERX4012
125	32	102x87	80x60	11X9	155	150	07P1F125D32DTERX5015
160	40	135x114	105x80	13.5x11	190	200	07P1F160D40DTERX6020
200	40	135x114	105x80	13.5x11	235	220	07P1F200D40DTERX6020

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber tread, roller bearing
