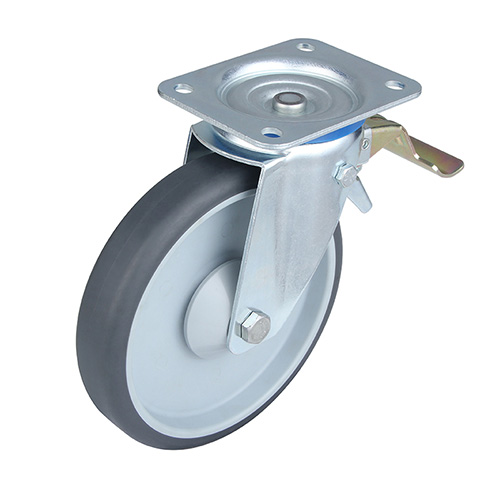

Grey Thermoplastic Rubber Swivel Castor with Front Lock Grey Thermoplastic Rubber Swivel Castor with Front Lock

Grey Thermoplastic Rubber Swivel Castor with Front Lock

Housing

tail_brake_castors

Wheel diameter

160, 200mm

Load capacity

200, 220kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 85

Description

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber thread, central ball bearing, dark grey samll plastic thread guards

Chat Now

TECHNICAL DATA


Wheel Diameter

Width of Tread

Size of Plate

Plate hole centers

Plate hole

Offset

Swivel radius

Overall height

Load capacity
number
160 40 135x110 105x80 13.5x11 52 154 190 200 07P1FB160D40DTEBA6212
200 40 135x110 105x80 13.5x11 54 154 235 220 07P1FB200D40DTEBA6212

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber thread, central ball bearing, dark grey samll plastic thread guards

Suitable Floor
Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor
