Wheel Diameter |
Width of Tread |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|
100 | 32 | 36 | ф10.5/ф13 | 124 | 100 | 07H1S100D32DTEBA428 |
100 | 32 | 36 | ф10.5/ф13 | 127 | 100 | 07H1S/S100D32DTEBA428 |
125 | 32 | 36 | ф10.5/ф13 | 154 | 150 | 07H1S125D32DTEBA5210 |
160 | 40 | 52 | ф16 | 185 | 200 | 07H1S160D40DTEBA6212 |
200 | 40 | 54 | ф16 | 230 | 220 | 07H1S200D40DTEBA6212 |

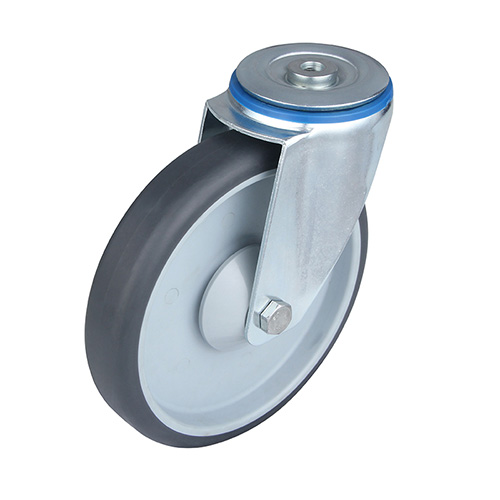

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber thread, central ball bearing, dark grey samll plastic thread guards
