 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Swivel radius |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|---|
| 100 | 32 | 105x80 | 80x60 | 11X9 | 40 | 129 | 125 | 100 | 07P1TB100D32DTEBA428 |
| 100 | 32 | 105x80 | 80x60 | 11X9 | 40 | 132 | 128 | 100 | 07P1TB/S100D32DTEBA428 |
| 125 | 32 | 105x80 | 80x60 | 11X9 | 40 | 134 | 155 | 150 | 07P1TB125D32DTEBA5210 |
| 160 | 40 | 135x110 | 105x80 | 13.5x11 | 60 | 203 | 190 | 200 | 07P1TB160D40DTEBA6212 |
| 200 | 40 | 135x110 | 105x80 | 13.5x11 | 54 | 156 | 235 | 220 | 07P1TB200D40DTEBA6212 |

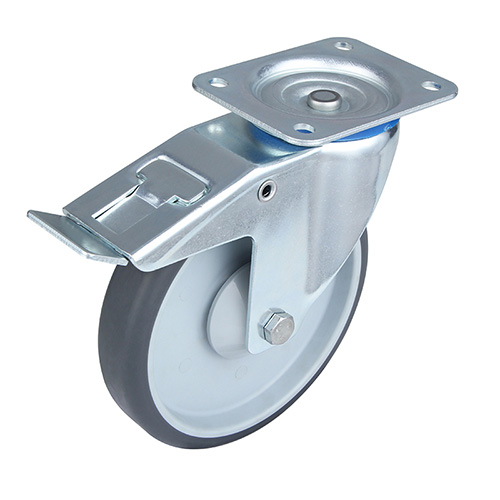

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber thread, central ball bearing, dark grey samll plastic thread guards
