Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Swivel radius |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
80 | 32 | 105x80 | 80x60 | 11X9 | 36 | 129 | 100 | 100 | 07P1TB80D32DTRBA428 |
100 | 32 | 105x80 | 80x60 | 11X9 | 40 | 132 | 125 | 132 | 07P1TB100D32DTRBA428 |
100 | 32 | 105x80 | 80x60 | 11X9 | 40 | 132 | 128 | 120 | 07P1TB/S100D32DTRBA428 |

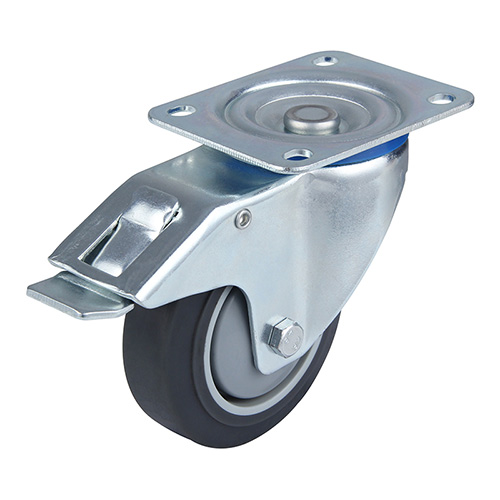

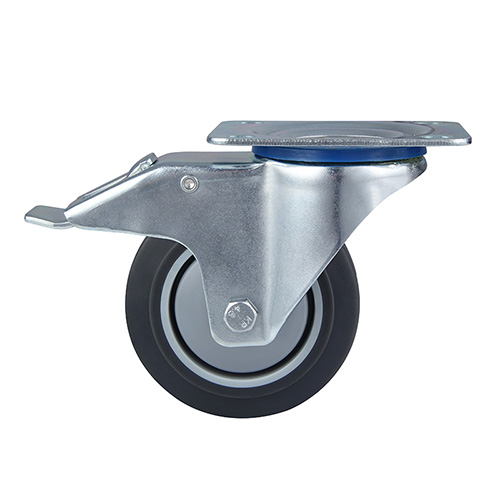

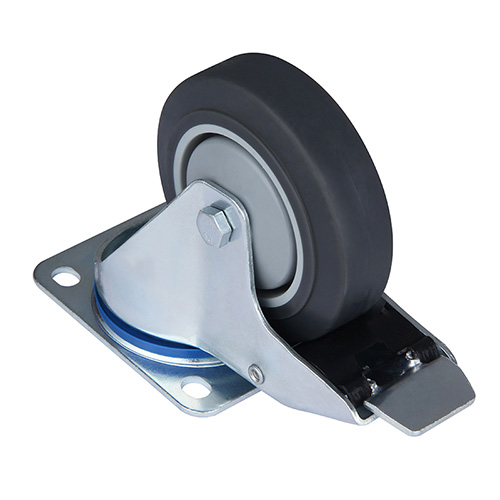

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber tread,centre ball bearing, grey samll plastic thread guards
