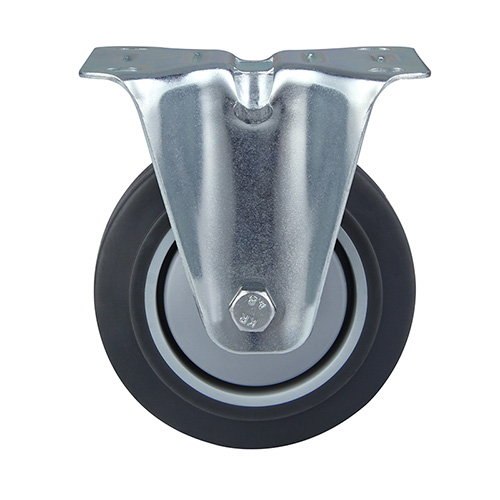

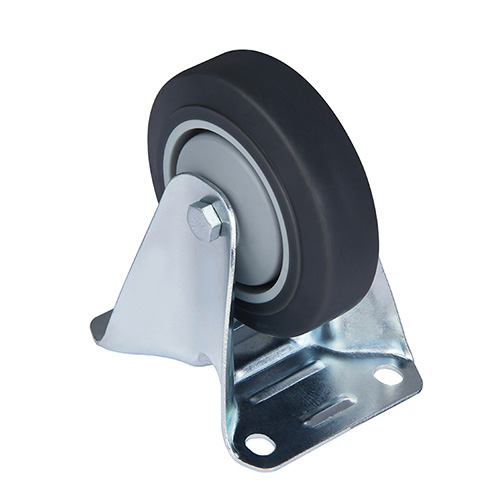

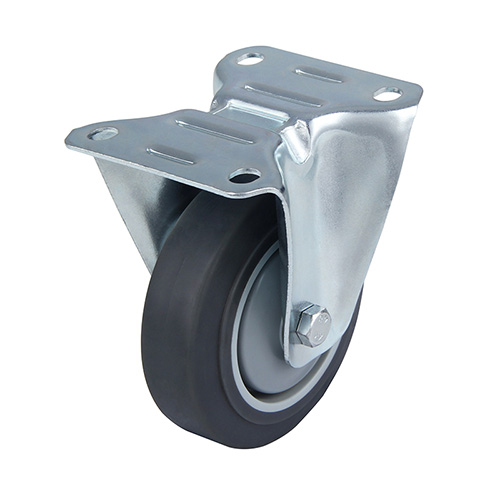

Grey Thermoplastic Rubber Fixed Castor with Roller Bearing with Grey Samll Plastic Thread Guards

Grey Thermoplastic Rubber Fixed Castor with Roller Bearing with Grey Samll Plastic Thread Guards

Industrial Castors , Grey

Housing

fixed_castors

Wheel diameter

80, 100, 100mm

Load capacity

100, 120, 120kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 85

Description

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dar

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Overall height	Load capacity	number
80	32	102x87	80x60	11X9	100	100	07P1F80D32DTRBA428
100	32	102x87	80x60	11X9	125	120	07P1F100D32DTRBA428
100	32	102x87	80x60	11X9	128	120	07P1F/S100D32DTRBA428

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber tread,centre ball bearing, grey samll plastic thread guards
