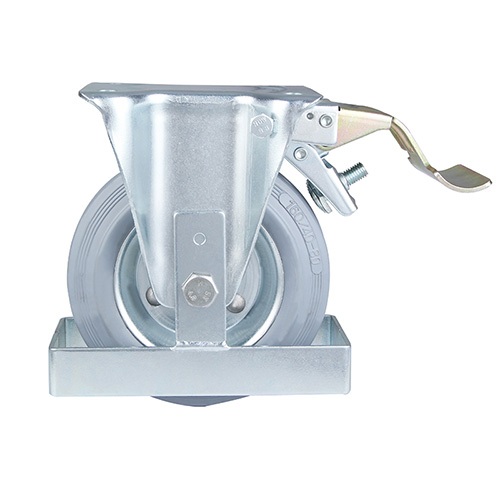

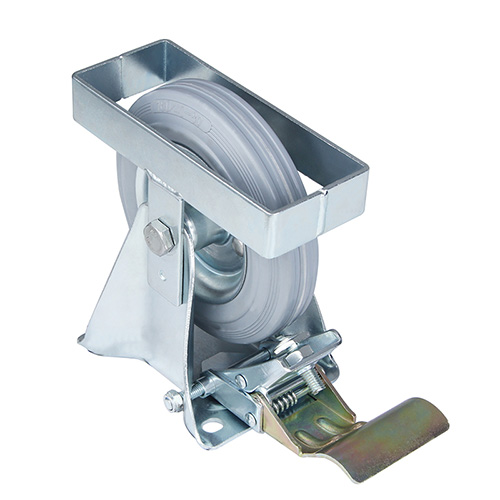

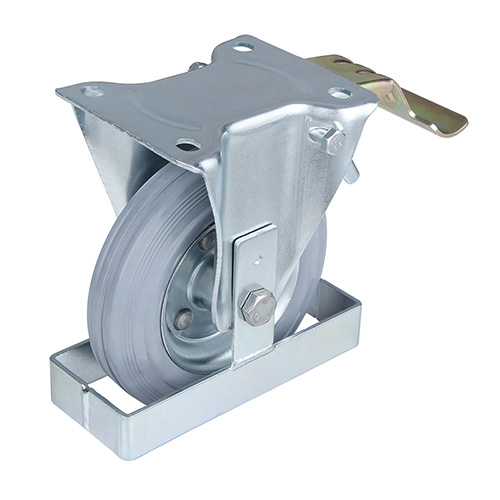

Grey Solid Rubber Fixed Castor with Front Lock Grey Solid Rubber Fixed Castor with Front Lock
Grey Solid Rubber Fixed Castor with Front Lock Grey Solid Rubber Fixed Castor with Front Lock
Grey Solid Rubber Fixed Castor with Front Lock Grey Solid Rubber Fixed Castor with Front Lock

Grey Solid Rubber Fixed Castor with Front Lock

Housing

fixed_castors_with_tail_brake

Wheel diameter

160mm

Load capacity

140kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 85+/-3

Description

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey 85+/-3 solid rubber tread, pressed steel wheel centre, roller bearing

Chat Now

TECHNICAL DATA


Wheel Diameter

Width of Tread

Size of Plate

Plate hole centers

Plate hole

Overall height

Load capacity
number
160 40 135x114 105x80 13.5x11 195 140 07P1F/FB200D50JGMRX6020

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey 85+/-3 solid rubber tread, pressed steel wheel centre, roller bearing

Suitable Floor
Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor

Asphalt Floor

Asphalt Floor

Not Paved

Not Paved

Expanded Metal

Expanded Metal

Floor With Chips

Floor With Chips
