Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Swivel radius |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
160 | 40 | 135x110 | 105x80 | 13.5x11 | 52 | 154 | 190 | 140 | 07P1DB160D40CGPRX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 54 | 154 | 235 | 205 | 07P1DB200D50CGPRX6020 |

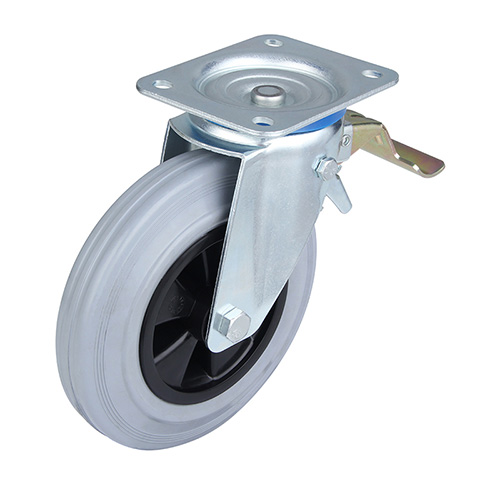

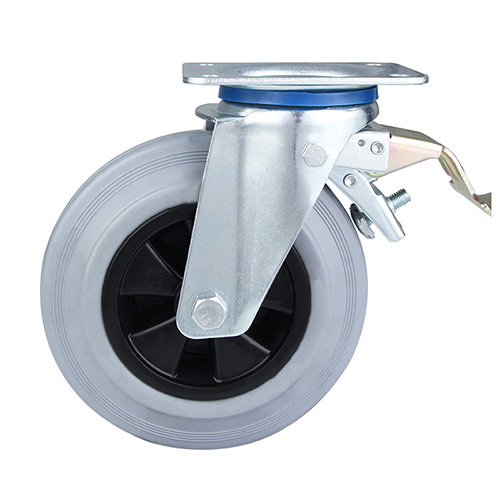

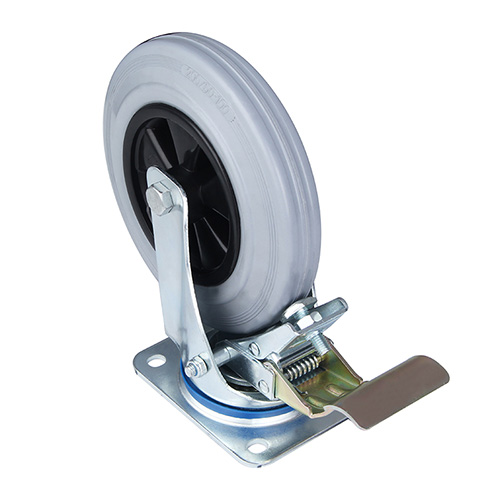

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, Grey Shore A 85+/-3 solid rubber tread, black polypropylene wheel centre, roller bearing
