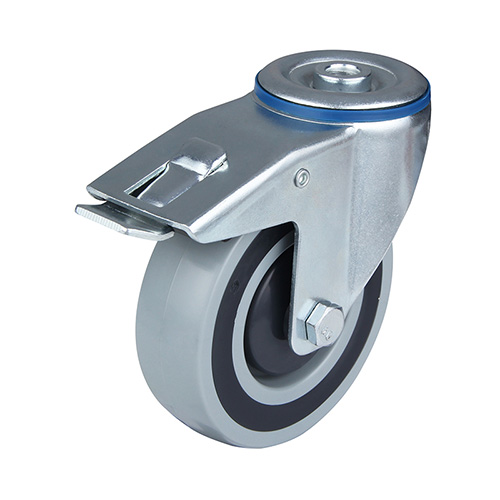

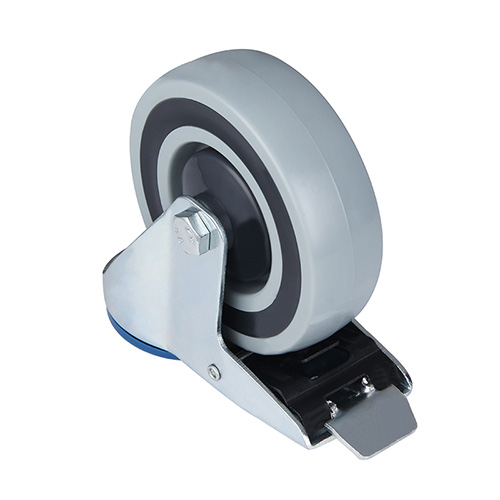

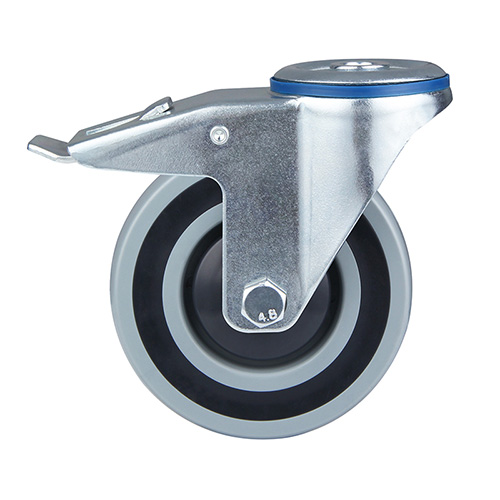

Grey Polypropylene Sandwich Swivel Castor with Bolt Hole and Total Lock

Grey Polypropylene Sandwich Swivel Castor with Bolt Hole and Total Lock

Industrial Castors , Grey

Housing

bolt_hole_castors_with_total_brake

Wheel diameter

100, 100, 125mm

Load capacity

135, 135, 160kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 85

Description

Pressed steel swivel fork assembly, zinc-plated, swivel head with double ball race, grey polypropylene thread, grey polypropylene with dark grey shore a 85

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Offset	Hole center	Swivel raidus	Overall height	Load capacity	number
100	36	40	ф10.5/ф13	132	124	135	07H1TB100D36DRERX4012
100	36	40	ф10.5/ф13	132	127	135	07H1TB/S100D36DRERX4012
125	36	40	ф10.5/ф13	134	154	160	07H1TB125D36DRERX5015

Pressed steel swivel fork assembly, zinc-plated, swivel head with double ball race, grey polypropylene thread, grey polypropylene with dark grey shore a 85"thermoplastic rubber wheel centre, roller bearing,samll metal thread guards
